IPsec VTI pfSense to UniFi
-
Hey there,
we are trying to setup an IPsec VTI VPN from pfSense (2.4.4-RELEASE-p3) to a Ubiquiti UniFi Security Gateway Pro (USG 4P).
We have a similar problem like in this thread https://forum.netgate.com/topic/137566/ipsec-vti-to-edgerouterThe IPsec tunnel comes up but we can't ping the other site.
When I try to ping the USG we receive the following message:
"sendto: Network is down"
From the USG the ping isnt working too.
We can see the pings/ICMP packets on the tcpdump. They are arriving at enc0 but not passed to the ipsec1000 interface.TCPDUMP (Ping from UniFi USG to pfSense):
[2.4.4-RELEASE][root@fw1]/root: tcpdump -i enc0 tcpdump: verbose output suppressed, use -v or -vv for full protocol decode listening on enc0, link-type ENC (OpenBSD encapsulated IP), capture size 262144 bytes 18:59:16.991653 (authentic,confidential): SPI 0xc78121e7: IP 10.255.243.243 > 10.255.2 43.242: ICMP echo request, id 18830, seq 1, length 64 18:59:17.993508 (authentic,confidential): SPI 0xc78121e7: IP 10.255.243.243 > 10.255.243.242: ICMP echo request, id 18830, seq 2, length 64 18:59:19.003181 (authentic,confidential): SPI 0xc78121e7: IP 10.255.243.243 > 10.255.243.242: ICMP echo request, id 18830, seq 3, length 64 18:59:20.003406 (authentic,confidential): SPI 0xc78121e7: IP 10.255.243.243 > 10.255.243.242: ICMP echo request, id 18830, seq 4, length 64 18:59:21.003296 (authentic,confidential): SPI 0xc78121e7: IP 10.255.243.243 > 10.255.243.242: ICMP echo request, id 18830, seq 5, length 64 18:59:22.013359 (authentic,confidential): SPI 0xc78121e7: IP 10.255.243.243 > 10.255.243.242: ICMP echo request, id 18830, seq 6, length 64 18:59:23.013081 (authentic,confidential): SPI 0xc78121e7: IP 10.255.243.243 > 10.255.243.242: ICMP echo request, id 18830, seq 7, length 64 18:59:24.023411 (authentic,confidential): SPI 0xc78121e7: IP 10.255.243.243 > 10.255.243.242: ICMP echo request, id 18830, seq 8, length 64 18:59:25.023160 (authentic,confidential): SPI 0xc78121e7: IP 10.255.243.243 > 10.255.243.242: ICMP echo request, id 18830, seq 9, length 64 18:59:26.033296 (authentic,confidential): SPI 0xc78121e7: IP 10.255.243.243 > 10.255.243.242: ICMP echo request, id 18830, seq 10, length 64 18:59:27.033205 (authentic,confidential): SPI 0xc78121e7: IP 10.255.243.243 > 10.255.243.242: ICMP echo request, id 18830, seq 11, length 64 18:59:28.043571 (authentic,confidential): SPI 0xc78121e7: IP 10.255.243.243 > 10.255.243.242: ICMP echo request, id 18830, seq 12, length 64 18:59:29.043329 (authentic,confidential): SPI 0xc78121e7: IP 10.255.243.243 > 10.255.243.242: ICMP echo request, id 18830, seq 13, length 64 18:59:30.043253 (authentic,confidential): SPI 0xc78121e7: IP 10.255.243.243 > 10.255.243.242: ICMP echo request, id 18830, seq 14, length 64 18:59:31.043221 (authentic,confidential): SPI 0xc78121e7: IP 10.255.243.243 > 10.255.243.242: ICMP echo request, id 18830, seq 15, length 64 18:59:32.043248 (authentic,confidential): SPI 0xc78121e7: IP 10.255.243.243 > 10.255.243.242: ICMP echo request, id 18830, seq 16, length 64Output of ifconfig:
[2.4.4-RELEASE][root@fw1]/root: ifconfig vtnet0: flags=8943<UP,BROADCAST,RUNNING,PROMISC,SIMPLEX,MULTICAST> metric 0 mtu 1500 options=c00b8<VLAN_MTU,VLAN_HWTAGGING,JUMBO_MTU,VLAN_HWCSUM,VLAN_HWTSO,LINKSTATE> ether 02:00:00:ef:85:e6 hwaddr 02:00:00:ef:85:e6 inet6 fe80::ff:feef:85e6%vtnet0 prefixlen 64 scopeid 0x1 inet6 XXXX:XXXX:XXXX:XXXX::3 prefixlen 64 inet6 XXXX:XXXX:XXXX:XXXX::2 prefixlen 64 vhid 3 inet XX.XX.XX.114 netmask 0xfffffff0 broadcast XX.XX.XX.127 inet XX.XX.XX.115 netmask 0xfffffff0 broadcast XX.XX.XX.127 vhid 5 nd6 options=21<PERFORMNUD,AUTO_LINKLOCAL> media: Ethernet 10Gbase-T <full-duplex> status: active carp: MASTER vhid 3 advbase 1 advskew 0 carp: MASTER vhid 5 advbase 1 advskew 0 vtnet1: flags=8943<UP,BROADCAST,RUNNING,PROMISC,SIMPLEX,MULTICAST> metric 0 mtu 1500 options=d00b8<VLAN_MTU,VLAN_HWTAGGING,JUMBO_MTU,VLAN_HWCSUM,VLAN_HWFILTER,VLAN_HWTSO,LINKSTATE> ether 26:88:14:13:f6:c0 hwaddr 26:88:14:13:f6:c0 inet6 fe80::2488:14ff:fe13:f6c0%vtnet1 prefixlen 64 scopeid 0x2 inet6 fd60:fef5:50c0:e3fc::2 prefixlen 64 inet6 fd60:fef5:50c0:e3cf::1 prefixlen 64 vhid 4 inet 10.0.0.2 netmask 0xfffffc00 broadcast 10.0.3.255 inet 10.0.0.1 netmask 0xfffffc00 broadcast 10.0.3.255 vhid 1 nd6 options=21<PERFORMNUD,AUTO_LINKLOCAL> media: Ethernet 10Gbase-T <full-duplex> status: active carp: MASTER vhid 1 advbase 1 advskew 0 carp: MASTER vhid 4 advbase 1 advskew 0 vtnet2: flags=8943<UP,BROADCAST,RUNNING,PROMISC,SIMPLEX,MULTICAST> metric 0 mtu 1500 options=c00b8<VLAN_MTU,VLAN_HWTAGGING,JUMBO_MTU,VLAN_HWCSUM,VLAN_HWTSO,LINKSTATE> ether 72:df:07:2c:37:6b hwaddr 72:df:07:2c:37:6b inet6 fe80::70df:7ff:fe2c:376b%vtnet2 prefixlen 64 scopeid 0x3 inet6 fdf5:3371:813a:5aac::2 prefixlen 64 inet6 fdf5:3371:813a:5aac::1 prefixlen 64 vhid 7 inet 10.0.8.2 netmask 0xfffffc00 broadcast 10.0.11.255 inet 10.0.8.1 netmask 0xfffffc00 broadcast 10.0.11.255 vhid 6 nd6 options=21<PERFORMNUD,AUTO_LINKLOCAL> media: Ethernet 10Gbase-T <full-duplex> status: active carp: MASTER vhid 6 advbase 1 advskew 0 carp: MASTER vhid 7 advbase 1 advskew 0 enc0: flags=41<UP,RUNNING> metric 0 mtu 1536 nd6 options=21<PERFORMNUD,AUTO_LINKLOCAL> groups: enc lo0: flags=8049<UP,LOOPBACK,RUNNING,MULTICAST> metric 0 mtu 16384 options=600003<RXCSUM,TXCSUM,RXCSUM_IPV6,TXCSUM_IPV6> inet6 ::1 prefixlen 128 inet6 fe80::1%lo0 prefixlen 64 scopeid 0x5 inet 127.0.0.1 netmask 0xff000000 nd6 options=21<PERFORMNUD,AUTO_LINKLOCAL> groups: lo pflog0: flags=100<PROMISC> metric 0 mtu 33160 groups: pflog pfsync0: flags=41<UP,RUNNING> metric 0 mtu 1500 groups: pfsync pfsync: syncdev: vtnet1 syncpeer: 10.0.0.3 maxupd: 128 defer: off syncok: 1 ovpns1: flags=8051<UP,POINTOPOINT,RUNNING,MULTICAST> metric 0 mtu 1500 options=80000<LINKSTATE> inet6 fe80::10d4:df6d:5e75:438d%ovpns1 prefixlen 64 scopeid 0x9 inet6 fd75:6d19:84ae:d2c9::1 prefixlen 64 inet 10.0.252.1 --> 10.0.252.2 netmask 0xffffffff nd6 options=21<PERFORMNUD,AUTO_LINKLOCAL> groups: tun openvpn Opened by PID 57928 ovpns2: flags=8051<UP,POINTOPOINT,RUNNING,MULTICAST> metric 0 mtu 1500 options=80000<LINKSTATE>Ping from pfSense to UniFi USG:
2.4.4-RELEASE][root@fw1]/root: ping 10.255.243.243 PING 10.255.243.243 (10.255.243.243): 56 data bytes ping: sendto: Network is down ping: sendto: Network is down ping: sendto: Network is down ping: sendto: Network is down ^C --- 10.255.243.243 ping statistics --- 4 packets transmitted, 0 packets received, 100.0% packet lossVTI interface configuration at UniFi USG
device-admin@USG-PRO1# show interfaces vti vti64 address 10.255.243.243/28 firewall { in { ipv6-name LANv6_IN name LAN_IN } local { ipv6-name LANv6_LOCAL name LAN_LOCAL } out { ipv6-name LANv6_OUT name LAN_OUT } } [edit]IPsec configuration at UniFi USG:

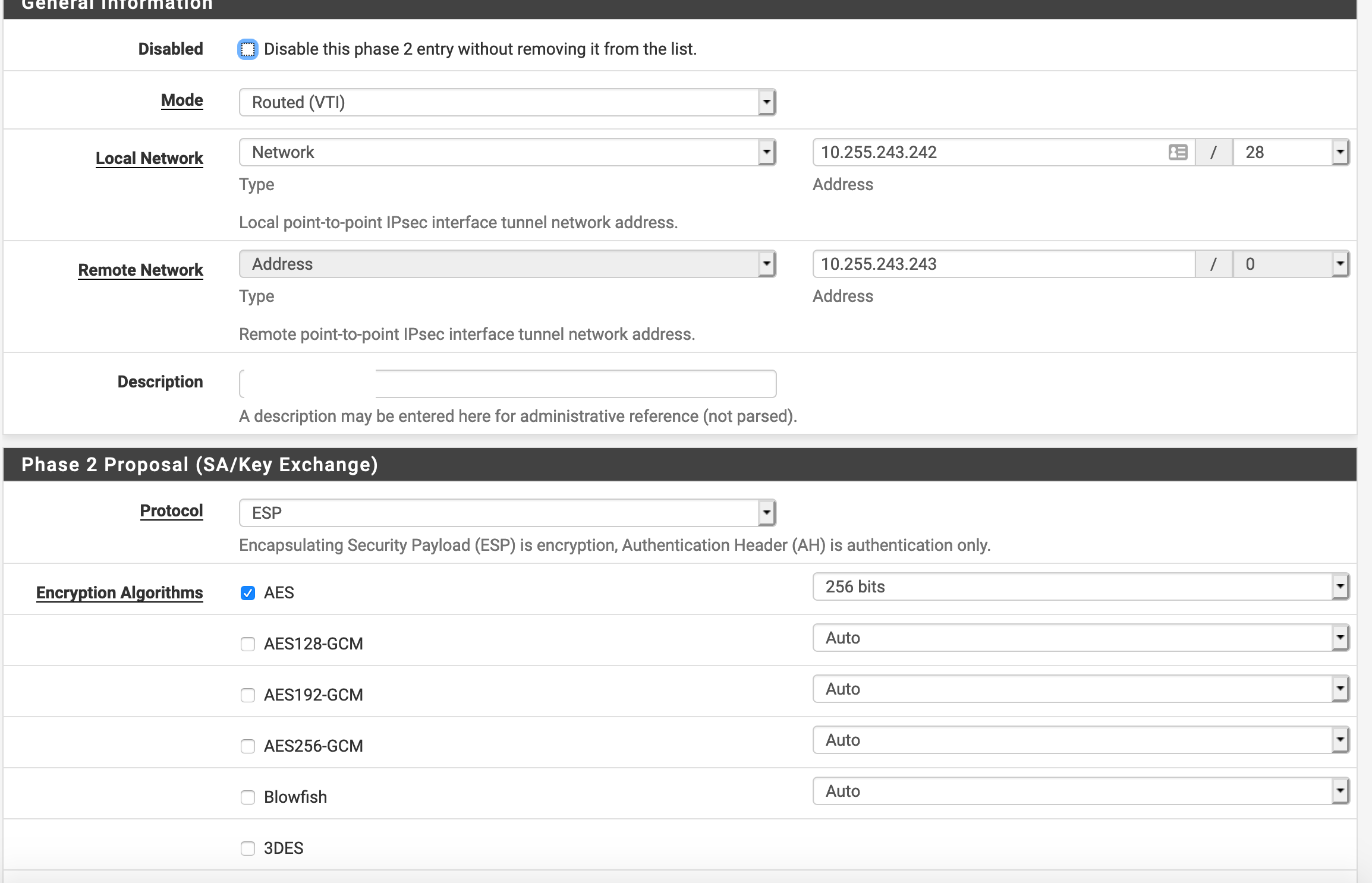

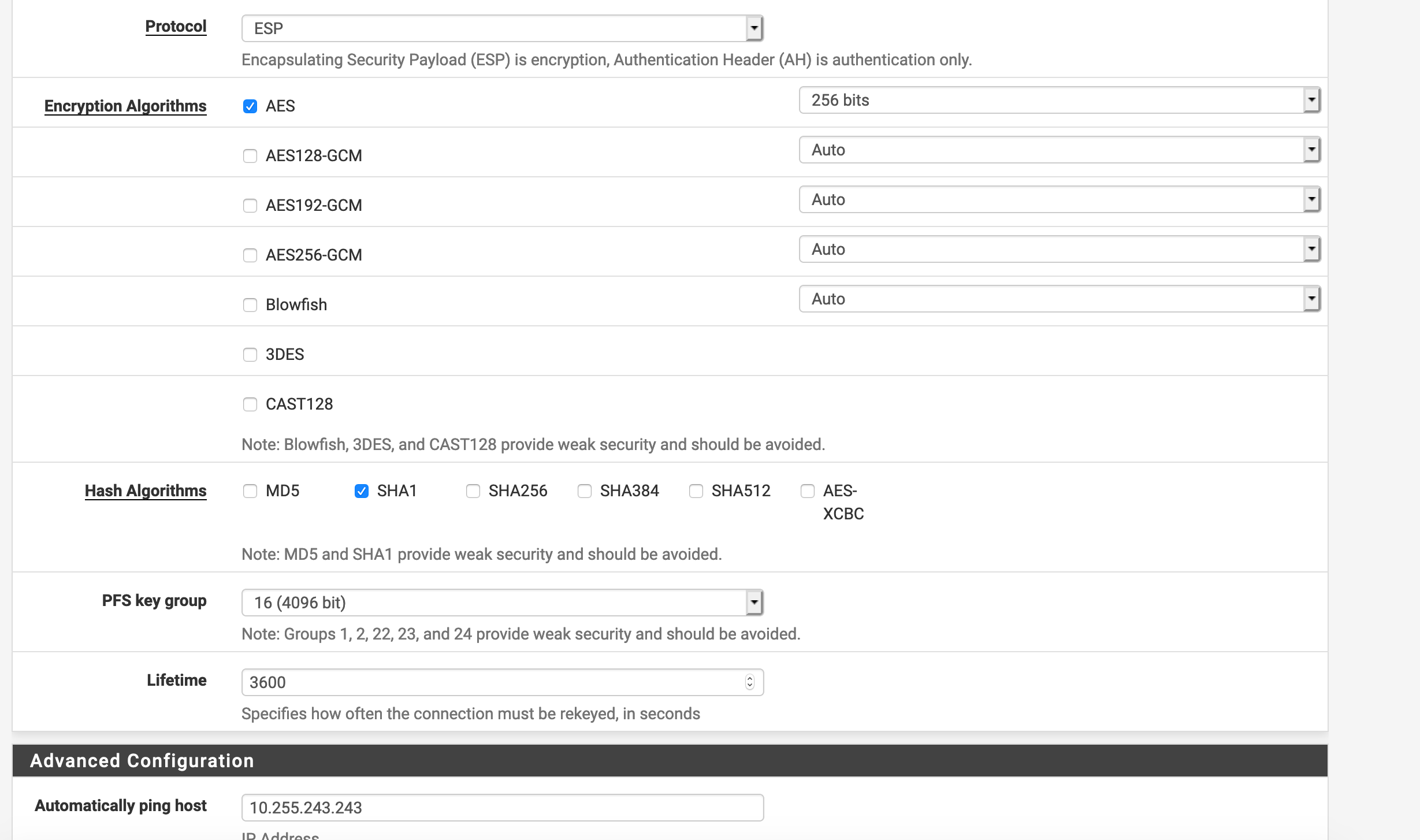

device-admin@USG-PRO1# show vpn ipsec auto-firewall-nat-exclude enable esp-group ESP_XX.XX.XX.114 { compression disable lifetime 3600 mode tunnel pfs disable proposal 1 { encryption aes256 hash sha1 } } ike-group IKE_XX.XX.XX.114 { key-exchange ikev2 lifetime 28800 proposal 1 { dh-group 16 encryption aes256 hash sha1 } } ipsec-interfaces { interface pppoe2 } nat-networks { allowed-network 0.0.0.0/0 { } } nat-traversal enable site-to-site { peer XX.XX.XX.114 { authentication { mode pre-shared-secret pre-shared-secret "secret-key-here" } connection-type initiate ike-group IKE_XX.XX.XX.114 local-address XX.XX.XX.253 vti { bind vti64 esp-group ESP_XX.XX.XX.114 } } } [edit]pfSense IPsec setup:
-
Has anyone an Idea how to fix this Issue, that the pfSense receives the traffic at the correct interface and we can send traffic to the other site without receiving the "Network is down" error.
-
@kriechmaden
Hi
ifconfig does not show that the vti tunnel is up (There is no vti tunnel in the list of interfaces, ipsec1000, for example)
This is the output of ifconfig on my PFSense .enc0: flags=41<UP,RUNNING> metric 0 mtu 1536 nd6 options=21<PERFORMNUD,AUTO_LINKLOCAL> groups: enc lo0: flags=8049<UP,LOOPBACK,RUNNING,MULTICAST> metric 0 mtu 16384 options=600003<RXCSUM,TXCSUM,RXCSUM_IPV6,TXCSUM_IPV6> inet6 ::1 prefixlen 128 inet6 fe80::1%lo0 prefixlen 64 scopeid 0x4 inet 127.0.0.1 netmask 0xff000000 nd6 options=21<PERFORMNUD,AUTO_LINKLOCAL> groups: lo pflog0: flags=100<PROMISC> metric 0 mtu 33160 groups: pflog pfsync0: flags=0<> metric 0 mtu 1500 groups: pfsync syncpeer: 224.0.0.240 maxupd: 128 defer: on syncok: 1 ipsec1000: flags=8051<UP,POINTOPOINT,RUNNING,MULTICAST> metric 0 mtu 1400 tunnel inet 10.3.100.1 --> 10.3.100.100 inet6 fe80::a00:27ff:fe02:c8c1%ipsec1000 prefixlen 64 scopeid 0x7 inet 10.6.106.1 --> 10.6.106.2 netmask 0xfffffffc nd6 options=21<PERFORMNUD,AUTO_LINKLOCAL> reqid: 1000 groups: ipsec -
@Konstanti said in IPsec VTI pfSense to UniFi:
@kriechmaden
Hi
ifconfig does not show that the vti tunnel is up (There is no vti tunnel in the list of interfaces, ipsec1000, for example)
This is the output of ifconfig on my PFSense .
enc0: flags=41<UP,RUNNING> metric 0 mtu 1536
nd6 options=21<PERFORMNUD,AUTO_LINKLOCAL>
groups: enc
lo0: flags=8049<UP,LOOPBACK,RUNNING,MULTICAST> metric 0 mtu 16384
options=600003<RXCSUM,TXCSUM,RXCSUM_IPV6,TXCSUM_IPV6>
inet6 ::1 prefixlen 128
inet6 fe80::1%lo0 prefixlen 64 scopeid 0x4
inet 127.0.0.1 netmask 0xff000000
nd6 options=21<PERFORMNUD,AUTO_LINKLOCAL>
groups: lo
pflog0: flags=100<PROMISC> metric 0 mtu 33160
groups: pflog
pfsync0: flags=0<> metric 0 mtu 1500
groups: pfsync
syncpeer: 224.0.0.240 maxupd: 128 defer: on
syncok: 1
ipsec1000: flags=8051<UP,POINTOPOINT,RUNNING,MULTICAST> metric 0 mtu 1400
tunnel inet 10.3.100.1 --> 10.3.100.100
inet6 fe80::a00:27ff:fe02:c8c1%ipsec1000 prefixlen 64 scopeid 0x7
inet 10.6.106.1 --> 10.6.106.2 netmask 0xfffffffc
nd6 options=21<PERFORMNUD,AUTO_LINKLOCAL>
reqid: 1000
groups: ipsec[2.4.4-RELEASE][root@fw1]/root: ifconfig vtnet0: flags=8943<UP,BROADCAST,RUNNING,PROMISC,SIMPLEX,MULTICAST> metric 0 mtu 1500 options=c00b8<VLAN_MTU,VLAN_HWTAGGING,JUMBO_MTU,VLAN_HWCSUM,VLAN_HWTSO,LINKSTATE> ether 02:00:00:ef:85:e6 hwaddr 02:00:00:ef:85:e6 inet6 fe80::ff:feef:85e6%vtnet0 prefixlen 64 scopeid 0x1 inet6 XXXX:XXXX:XXXX:XXXX::3 prefixlen 64 inet6 XXXX:XXXX:XXXX:XXXX::2 prefixlen 64 vhid 3 inet XXX.XXX.XXX.114 netmask 0xfffffff0 broadcast XXX.XXX.XXX.XXX inet XXX.XXX.XXX.115 netmask 0xfffffff0 broadcast XXX.XXX.XXX.XXX vhid 5 nd6 options=21<PERFORMNUD,AUTO_LINKLOCAL> media: Ethernet 10Gbase-T <full-duplex> status: active carp: MASTER vhid 3 advbase 1 advskew 0 carp: MASTER vhid 5 advbase 1 advskew 0 vtnet1: flags=8943<UP,BROADCAST,RUNNING,PROMISC,SIMPLEX,MULTICAST> metric 0 mtu 1500 options=c00b8<VLAN_MTU,VLAN_HWTAGGING,JUMBO_MTU,VLAN_HWCSUM,VLAN_HWTSO,LINKSTATE> ether 26:88:14:13:f6:c0 hwaddr 26:88:14:13:f6:c0 inet6 fe80::2488:14ff:fe13:f6c0%vtnet1 prefixlen 64 scopeid 0x2 inet6 fd60:fef5:50c0:e3fc::2 prefixlen 64 inet6 fd60:fef5:50c0:e3cf::1 prefixlen 64 vhid 4 inet 10.0.0.2 netmask 0xfffffc00 broadcast 10.0.3.255 inet 10.0.0.1 netmask 0xfffffc00 broadcast 10.0.3.255 vhid 1 nd6 options=21<PERFORMNUD,AUTO_LINKLOCAL> media: Ethernet 10Gbase-T <full-duplex> status: active carp: MASTER vhid 1 advbase 1 advskew 0 carp: MASTER vhid 4 advbase 1 advskew 0 vtnet2: flags=8943<UP,BROADCAST,RUNNING,PROMISC,SIMPLEX,MULTICAST> metric 0 mtu 1500 options=c00b8<VLAN_MTU,VLAN_HWTAGGING,JUMBO_MTU,VLAN_HWCSUM,VLAN_HWTSO,LINKSTATE> ether 72:df:07:2c:37:6b hwaddr 72:df:07:2c:37:6b inet6 fe80::70df:7ff:fe2c:376b%vtnet2 prefixlen 64 scopeid 0x3 inet6 fdf5:3371:813a:5aac::2 prefixlen 64 inet6 fdf5:3371:813a:5aac::1 prefixlen 64 vhid 7 inet 10.0.8.2 netmask 0xfffffc00 broadcast 10.0.11.255 inet 10.0.8.1 netmask 0xfffffc00 broadcast 10.0.11.255 vhid 6 nd6 options=21<PERFORMNUD,AUTO_LINKLOCAL> media: Ethernet 10Gbase-T <full-duplex> status: active carp: MASTER vhid 6 advbase 1 advskew 0 carp: MASTER vhid 7 advbase 1 advskew 0 enc0: flags=41<UP,RUNNING> metric 0 mtu 1536 nd6 options=21<PERFORMNUD,AUTO_LINKLOCAL> groups: enc lo0: flags=8049<UP,LOOPBACK,RUNNING,MULTICAST> metric 0 mtu 16384 options=600003<RXCSUM,TXCSUM,RXCSUM_IPV6,TXCSUM_IPV6> inet6 ::1 prefixlen 128 inet6 fe80::1%lo0 prefixlen 64 scopeid 0x5 inet 127.0.0.1 netmask 0xff000000 nd6 options=21<PERFORMNUD,AUTO_LINKLOCAL> groups: lo pflog0: flags=100<PROMISC> metric 0 mtu 33160 groups: pflog pfsync0: flags=41<UP,RUNNING> metric 0 mtu 1500 groups: pfsync pfsync: syncdev: vtnet1 syncpeer: 10.0.0.3 maxupd: 128 defer: off syncok: 1 ovpns1: flags=8051<UP,POINTOPOINT,RUNNING,MULTICAST> metric 0 mtu 1500 options=80000<LINKSTATE> inet6 fe80::10d4:df6d:5e75:438d%ovpns1 prefixlen 64 scopeid 0x8 inet6 fd75:6d19:84ae:d2c9::1 prefixlen 64 inet 10.0.252.1 --> 10.0.252.2 netmask 0xffffffff nd6 options=21<PERFORMNUD,AUTO_LINKLOCAL> groups: tun openvpn Opened by PID 87483 ovpns2: flags=8051<UP,POINTOPOINT,RUNNING,MULTICAST> metric 0 mtu 1500 options=80000<LINKSTATE> inet6 fe80::10d4:df6d:5e75:438d%ovpns2 prefixlen 64 scopeid 0x9 inet6 fd9f:17e9:b703:fb61::1 prefixlen 64 inet 10.0.248.1 --> 10.0.248.2 netmask 0xffffffff nd6 options=21<PERFORMNUD,AUTO_LINKLOCAL> groups: tun openvpn Opened by PID 92953 ovpns3: flags=8051<UP,POINTOPOINT,RUNNING,MULTICAST> metric 0 mtu 1500 options=80000<LINKSTATE> inet6 fe80::10d4:df6d:5e75:438d%ovpns3 prefixlen 64 scopeid 0xa inet6 fd27:dd3e:7e8e:d32e::1 prefixlen 64 inet 10.0.244.1 --> 10.0.244.2 netmask 0xffffffff nd6 options=21<PERFORMNUD,AUTO_LINKLOCAL> groups: tun openvpn Opened by PID 11769 ovpns4: flags=8051<UP,POINTOPOINT,RUNNING,MULTICAST> metric 0 mtu 1500 options=80000<LINKSTATE> inet6 fe80::10d4:df6d:5e75:438d%ovpns4 prefixlen 64 scopeid 0xb inet6 fd7d:a519:4cbf:b745::1 prefixlen 64 inet 10.255.243.241 --> 10.255.243.242 netmask 0xffffffff nd6 options=21<PERFORMNUD,AUTO_LINKLOCAL> groups: tun openvpn Opened by PID 18031 ipsec1000: flags=8051<UP,POINTOPOINT,RUNNING,MULTICAST> metric 0 mtu 1500 tunnel inet XXX.XXX.XXX.114 --> XXX.XXX.XXX.253 inet6 fe80::10d4:df6d:5e75:438d%ipsec1000 prefixlen 64 scopeid 0xc inet 10.252.243.242 --> 10.252.243.243 netmask 0xfffffff0 nd6 options=21<PERFORMNUD,AUTO_LINKLOCAL> reqid: 1000 groups: ipsecVery strange the tunnel is now up and it seems to be working.
Niw the problem is, that if we ping the other site no response from the host is coming. But on a tcpdum we see, that the ICMP reuqest was received and the echo is send.Ping from UniFi to pfSense:
tcpdump on the pfSense
[2.4.4-RELEASE][root@fw1]/root: tcpdump -i ipsec1000 tcpdump: verbose output suppressed, use -v or -vv for full protocol decode listening on ipsec1000, link-type NULL (BSD loopback), capture size 262144 bytes 16:09:14.055108 IP ip114.ip-51-75-157.eu > 10.1.0.2: ICMP echo request, id 34846, seq 51345, length 44 16:09:14.148584 IP 10.252.243.242 > 10.252.243.243: ICMP echo request, id 2268, seq 997, length 8 16:09:14.248284 IP 10.252.243.243 > 10.252.243.242: ICMP echo request, id 27647, seq 10, length 64 16:09:14.248326 IP 10.252.243.242 > 10.252.243.243: ICMP echo reply, id 27647, seq 10, length 64 16:09:14.388477 IP ip114.ip-51-75-157.eu > 10.1.0.2: ICMP echo request, id 34846, seq 51346, length 44 16:09:14.568088 IP 10.252.243.243 > 10.252.243.242: ICMP echo request, id 19207, seq 223, length 64 16:09:14.568148 IP 10.252.243.242 > 10.252.243.243: ICMP echo reply, id 19207, seq 223, length 64 16:09:14.659358 IP 10.252.243.242 > 10.252.243.243: ICMP echo request, id 2268, seq 998, length 8 16:09:15.055940 IP ip114.ip-51-75-157.eu > 10.1.0.2: ICMP echo request, id 34846, seq 51348, length 44 16:09:15.169418 IP 10.252.243.242 > 10.252.243.243: ICMP echo request, id 2268, seq 999, length 8 16:09:15.249018 IP 10.252.243.243 > 10.252.243.242: ICMP echo request, id 27647, seq 11, length 64 16:09:15.249038 IP 10.252.243.242 > 10.252.243.243: ICMP echo reply, id 27647, seq 11, length 64 16:09:15.389457 IP ip114.ip-51-75-157.eu > 10.1.0.2: ICMP echo request, id 34846, seq 51349, length 44 16:09:15.569286 IP 10.252.243.243 > 10.252.243.242: ICMP echo request, id 19207, seq 224, length 64 16:09:15.569363 IP 10.252.243.242 > 10.252.243.243: ICMP echo reply, id 19207, seq 224, length 64 16:09:15.690172 IP 10.252.243.242 > 10.252.243.243: ICMP echo request, id 2268, seq 1000, length 8 16:09:16.057022 IP ip114.ip-51-75-157.eu > 10.1.0.2: ICMP echo request, id 34846, seq 51351, length 44 16:09:16.227717 IP 10.252.243.242 > 10.252.243.243: ICMP echo request, id 2268, seq 1001, length 8 16:09:16.248121 IP 10.252.243.243 > 10.252.243.242: ICMP echo request, id 27647, seq 12, length 64 16:09:16.248179 IP 10.252.243.242 > 10.252.243.243: ICMP echo reply, id 27647, seq 12, length 64 16:09:16.390299 IP ip114.ip-51-75-157.eu > 10.1.0.2: ICMP echo request, id 34846, seq 51352, length 44 16:09:16.578063 IP 10.252.243.243 > 10.252.243.242: ICMP echo request, id 19207, seq 225, length 64 16:09:16.578156 IP 10.252.243.242 > 10.252.243.243: ICMP echo reply, id 19207, seq 225, length 64 16:09:16.764230 IP 10.252.243.242 > 10.252.243.243: ICMP echo request, id 2268, seq 1002, length 8 ^C 24 packets captured 24 packets received by filter 0 packets dropped by kernel [2.4.4-RELEASE][root@fw1]/root: tcpdump -i enc0 tcpdump: verbose output suppressed, use -v or -vv for full protocol decode listening on enc0, link-type ENC (OpenBSD encapsulated IP), capture size 262144 bytes 16:09:22.578118 (authentic,confidential): SPI 0xc24b31ec: IP 10.252.243.243 > 10.252.243.242: ICMP echo request, id 19207, seq 231, length 64 16:09:22.578170 (authentic,confidential): SPI 0xc7901687: IP 10.252.243.242 > 10.252.243.243: ICMP echo reply, id 19207, seq 231, length 64 16:09:23.049116 (authentic,confidential): SPI 0xc7901687: IP 10.252.243.242 > 10.252.243.243: ICMP echo request, id 2268, seq 1014, length 8 16:09:23.054739 (authentic,confidential): SPI 0xc7901687: IP ip114.ip-51-75-157.eu > 10.1.0.2: ICMP echo request, id 34846, seq 51372, length 44 16:09:23.247988 (authentic,confidential): SPI 0xc24b31ec: IP 10.252.243.243 > 10.252.243.242: ICMP echo request, id 27647, seq 19, length 64 16:09:23.248049 (authentic,confidential): SPI 0xc7901687: IP 10.252.243.242 > 10.252.243.243: ICMP echo reply, id 27647, seq 19, length 64 16:09:23.388236 (authentic,confidential): SPI 0xc7901687: IP ip114.ip-51-75-157.eu > 10.1.0.2: ICMP echo request, id 34846, seq 51373, length 44 16:09:23.563408 (authentic,confidential): SPI 0xc7901687: IP 10.252.243.242 > 10.252.243.243: ICMP echo request, id 2268, seq 1015, length 8 16:09:23.577872 (authentic,confidential): SPI 0xc24b31ec: IP 10.252.243.243 > 10.252.243.242: ICMP echo request, id 19207, seq 232, length 64 16:09:23.577917 (authentic,confidential): SPI 0xc7901687: IP 10.252.243.242 > 10.252.243.243: ICMP echo reply, id 19207, seq 232, length 64 16:09:24.055579 (authentic,confidential): SPI 0xc7901687: IP ip114.ip-51-75-157.eu > 10.1.0.2: ICMP echo request, id 34846, seq 51375, length 44 16:09:24.077415 (authentic,confidential): SPI 0xc7901687: IP 10.252.243.242 > 10.252.243.243: ICMP echo request, id 2268, seq 1016, length 8 ^C 12 packets captured 12 packets received by filter 0 packets dropped by kernelping command on the UniFi site:
device-admin@USG-PRO1:~$ ping 10.252.243.242 PING 10.252.243.242 (10.252.243.242) 56(84) bytes of data. ^C^C --- 10.252.243.242 ping statistics --- 31 packets transmitted, 0 received, 100% packet loss, time 30050ms device-admin@USG-PRO1:~$ ping 10.252.243.243 PING 10.252.243.243 (10.252.243.243) 56(84) bytes of data. 64 bytes from 10.252.243.243: icmp_req=1 ttl=64 time=0.146 ms 64 bytes from 10.252.243.243: icmp_req=2 ttl=64 time=0.125 ms 64 bytes from 10.252.243.243: icmp_req=3 ttl=64 time=0.148 ms 64 bytes from 10.252.243.243: icmp_req=4 ttl=64 time=0.113 ms ^C --- 10.252.243.243 ping statistics --- 4 packets transmitted, 4 received, 0% packet loss, time 3000ms rtt min/avg/max/mdev = 0.113/0.133/0.148/0.014 msPing from pfSense to UniFi:
tcpdump on UniFi:
root@USG-PRO1:~# tcpdump -i vti64 tcpdump: verbose output suppressed, use -v or -vv for full protocol decode listening on vti64, link-type RAW (Raw IP), capture size 262144 bytes 16:11:21.689119 IP 10.252.243.243 > 10.252.243.242: ICMP echo request, id 19207, seq 350, length 64 16:11:22.688719 IP 10.252.243.243 > 10.252.243.242: ICMP echo request, id 19207, seq 351, length 64 16:11:23.689212 IP 10.252.243.243 > 10.252.243.242: ICMP echo request, id 19207, seq 352, length 64 16:11:24.688916 IP 10.252.243.243 > 10.252.243.242: ICMP echo request, id 19207, seq 353, length 64 16:11:25.690202 IP 10.252.243.243 > 10.252.243.242: ICMP echo request, id 19207, seq 354, length 64 16:11:26.699178 IP 10.252.243.243 > 10.252.243.242: ICMP echo request, id 19207, seq 355, length 64 16:11:27.699096 IP 10.252.243.243 > 10.252.243.242: ICMP echo request, id 19207, seq 356, length 64 16:11:28.699099 IP 10.252.243.243 > 10.252.243.242: ICMP echo request, id 19207, seq 357, length 64 16:11:29.709125 IP 10.252.243.243 > 10.252.243.242: ICMP echo request, id 19207, seq 358, length 64 16:11:30.709099 IP 10.252.243.243 > 10.252.243.242: ICMP echo request, id 19207, seq 359, length 64 16:11:31.719095 IP 10.252.243.243 > 10.252.243.242: ICMP echo request, id 19207, seq 360, length 64 16:11:32.720917 IP 10.252.243.243 > 10.252.243.242: ICMP echo request, id 19207, seq 361, length 64 16:11:33.729182 IP 10.252.243.243 > 10.252.243.242: ICMP echo request, id 19207, seq 362, length 64 16:11:34.739091 IP 10.252.243.243 > 10.252.243.242: ICMP echo request, id 19207, seq 363, length 64 16:11:35.739018 IP 10.252.243.243 > 10.252.243.242: ICMP echo request, id 19207, seq 364, length 64 16:11:36.739108 IP 10.252.243.243 > 10.252.243.242: ICMP echo request, id 19207, seq 365, length 64 16:11:37.749104 IP 10.252.243.243 > 10.252.243.242: ICMP echo request, id 19207, seq 366, length 64 16:11:38.749143 IP 10.252.243.243 > 10.252.243.242: ICMP echo request, id 19207, seq 367, length 64 16:11:39.749049 IP 10.252.243.243 > 10.252.243.242: ICMP echo request, id 19207, seq 368, length 64 16:11:40.759056 IP 10.252.243.243 > 10.252.243.242: ICMP echo request, id 19207, seq 369, length 64 16:11:41.759098 IP 10.252.243.243 > 10.252.243.242: ICMP echo request, id 19207, seq 370, length 64 16:11:42.759097 IP 10.252.243.243 > 10.252.243.242: ICMP echo request, id 19207, seq 371, length 64 16:11:43.759065 IP 10.252.243.243 > 10.252.243.242: ICMP echo request, id 19207, seq 372, length 64 16:11:44.759087 IP 10.252.243.243 > 10.252.243.242: ICMP echo request, id 19207, seq 373, length 64 16:11:45.759073 IP 10.252.243.243 > 10.252.243.242: ICMP echo request, id 19207, seq 374, length 64 16:11:46.759099 IP 10.252.243.243 > 10.252.243.242: ICMP echo request, id 19207, seq 375, length 64 16:11:47.760307 IP 10.252.243.243 > 10.252.243.242: ICMP echo request, id 19207, seq 376, length 64 16:11:48.772532 IP 10.252.243.243 > 10.252.243.242: ICMP echo request, id 19207, seq 377, length 64 16:11:49.779243 IP 10.252.243.243 > 10.252.243.242: ICMP echo request, id 19207, seq 378, length 64 16:11:50.789094 IP 10.252.243.243 > 10.252.243.242: ICMP echo request, id 19207, seq 379, length 64 16:11:51.789082 IP 10.252.243.243 > 10.252.243.242: ICMP echo request, id 19207, seq 380, length 64 16:11:52.789099 IP 10.252.243.243 > 10.252.243.242: ICMP echo request, id 19207, seq 381, length 64 16:11:53.789073 IP 10.252.243.243 > 10.252.243.242: ICMP echo request, id 19207, seq 382, length 64 16:11:54.789129 IP 10.252.243.243 > 10.252.243.242: ICMP echo request, id 19207, seq 383, length 64 16:11:55.788908 IP 10.252.243.243 > 10.252.243.242: ICMP echo request, id 19207, seq 384, length 64 16:11:56.788971 IP 10.252.243.243 > 10.252.243.242: ICMP echo request, id 19207, seq 385, length 64 16:11:57.789097 IP 10.252.243.243 > 10.252.243.242: ICMP echo request, id 19207, seq 386, length 64 16:11:58.789057 IP 10.252.243.243 > 10.252.243.242: ICMP echo request, id 19207, seq 387, length 64 16:11:59.789097 IP 10.252.243.243 > 10.252.243.242: ICMP echo request, id 19207, seq 388, length 64 16:12:00.789103 IP 10.252.243.243 > 10.252.243.242: ICMP echo request, id 19207, seq 389, length 64 16:12:01.789119 IP 10.252.243.243 > 10.252.243.242: ICMP echo request, id 19207, seq 390, length 64 16:12:02.789123 IP 10.252.243.243 > 10.252.243.242: ICMP echo request, id 19207, seq 391, length 64 16:12:03.789111 IP 10.252.243.243 > 10.252.243.242: ICMP echo request, id 19207, seq 392, length 64 16:12:04.789085 IP 10.252.243.243 > 10.252.243.242: ICMP echo request, id 19207, seq 393, length 64 16:12:05.789154 IP 10.252.243.243 > 10.252.243.242: ICMP echo request, id 19207, seq 394, length 64 16:12:06.789099 IP 10.252.243.243 > 10.252.243.242: ICMP echo request, id 19207, seq 395, length 64 16:12:07.789096 IP 10.252.243.243 > 10.252.243.242: ICMP echo request, id 19207, seq 396, length 64 ^C 47 packets captured 47 packets received by filter 0 packets dropped by kernelPing command on pfSense:
[2.4.4-RELEASE][root@fw1]/root: ping 10.252.243.243 PING 10.252.243.243 (10.252.243.243): 56 data bytes ^C --- 10.252.243.243 ping statistics --- 10 packets transmitted, 0 packets received, 100.0% packet loss [2.4.4-RELEASE][root@fw1]/root: ping 10.252.243.242 PING 10.252.243.242 (10.252.243.242): 56 data bytes ^C --- 10.252.243.242 ping statistics --- 15 packets transmitted, 0 packets received, 100.0% packet loss
