pfSense DNS resolver (Unbound) - aggressive-nsec option



  • Ive recently deployed the barebones FreeBSD based Unbound DNS resolver, as a Simple recursive caching DNS, throughout our WISP network primarily for performance. Its been fantastic and im now quite familiar with more of its options.

    There's a bit of translation to do when comparing the Unbound options to the GUI options inside pfSense. One option, "aggressive-nsec" I cannot make out where that would be in the pfSense GUI. I tried enabling it through custom options (aggressive-nsec: yes) and Unbound just stopped working.

    Is this enabled by default by pfSense?

    For those of you unfamiliar with aggressive-nsec, here's a really cool write up on what its all about.

    https://medium.com/nlnetlabs/aggressive-use-of-the-dnssec-validated-cache-in-unbound-1ab3e315d13f



  • Hello!

    Maybe...

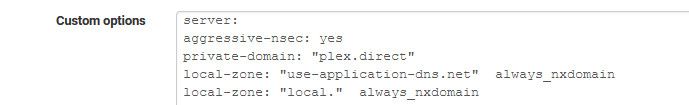

    server:aggressive-nsec: yes

    John



  • I tried that, and DNS resolver will not resolve.

    EDIT: My syntax was wrong, didnt realize I had to add "server:" for each individual option. Also, since I have pfBlocker running, gotta give Unbound some time to load everything up. Thanks!


  • LAYER 8 Global Moderator

    You do not need more than one server: statement




  • @johnpoz by the way this will not broke insecure subdomains resolving?

    Offtopic: pfSense need update documentation about Python module in Unbound.
    I create script with Filer and sh script to reload Unbound on change of this python script to:

    • override ::1 and 127.0.0.1 for list of domains, e.g: dev, localdomain, etc for local development
    • remove aaaa for list of domains.

    This can be as example in docs?


  • LAYER 8 Global Moderator

    Do you have a example we could test against?



  • @johnpoz I can check aggressive-nsec out of working hours and reply here.
    In short: my domain has enabled DNSSEC but due IPv4 🙈 I had to have private SplitDNS resolving which of course not signed by DNSSEC. So I have exclusions for subdomains in my domain that allows insecure resolving internally, like:

    server:
    # Allow private resolving for Internal domains:
    private-domain: "sub1.example.com"
    private-domain: "sub2.example.com"

    # Allow insecure resolving for Internal domains:
    domain-insecure: "sub1.example.com"
    domain-insecure: "sub2.example.com"

    # Forwarding sub1.example.com
    forward-zone:
        name: "sub1.example.com."
        forward-ssl-upstream: no
        forward-addr: 2001:470:abc::1@53
        forward-addr: 2001:470:abc::2@53
        forward-first: yes
        forward-no-cache: no

    # Forwarding sub2.example.com
    forward-zone:
        name: "sub2.example.com."
        forward-ssl-upstream: no
        forward-addr: 2001:470:abc::1@53
        forward-addr: 2001:470:abc::2@53
        forward-first: yes
        forward-no-cache: no


    I curious how this aggressive option will work in this case =)



  • This post is deleted!


  • @johnpoz from my test looks like it working. Maybe add Redmine task to add check-box option in advanced setting for it?


  • LAYER 8 Global Moderator

    You can always add a feature request sure.



  • @johnpoz https://redmine.pfsense.org/issues/10449 someone was more faster then I =D
