    'arp: writing to routing socket: Operation not permitted'

    Scheduled Pinned Locked Moved Routing and Multi WAN
    4 Posts 2 Posters 1.5k Views
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • JonathanLeeJ
      JonathanLee
      last edited by JonathanLee

      Hello I have been seeing alot of 0.0.0.0 requests for dhcp 0.0.0.0:68 -> 255.255.255.255:67

      Screen Shot 2022-04-23 at 8.23.26 AM.png

      I wanted to test adding in the firewalls IP address and MAC as a static entry so it stops doing this located here.

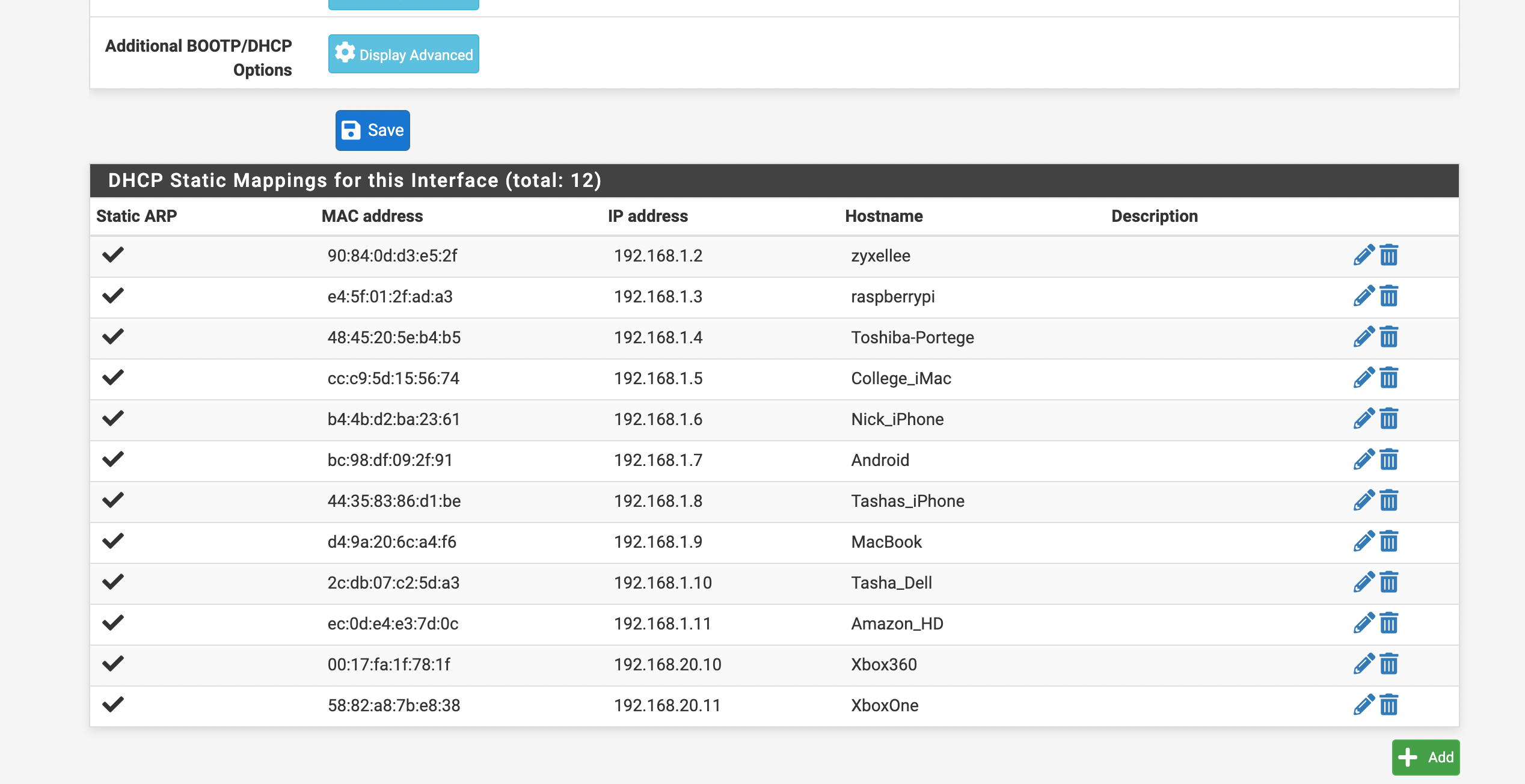

      Screen Shot 2022-04-23 at 8.19.11 AM.png

      I added it in however I received errors 'arp: writing to routing socket: Operation not permitted'

      Are we suppose to add in the firewalls IP and MAC? If this is done automatically why is it not listed as an address in the DHCP server already?

      Make sure to upvote

      GertjanG 1 Reply Last reply Reply Quote 0
      • GertjanG
        Gertjan @JonathanLee
        last edited by Gertjan

        @jonathanlee

        Your first image shows packets that come into the WAN interface.
        This means two things :

        1. You have another device in the WAN network that broadcasts "DHCP requests". pfSense doesn't have a DHCP server on it's WAN. not to be mistaken by a DHCP client. These requests will not be handled by pfSense - and will get dropped, as shown.
        2. You are logging traffic blocked by the default block (WAN) firewall rule. So now you see them, so you 'should' understand them ;)

        The second images shows your static DHCP leases, use by a DHCP server that servers your LAN(s).

        The pfSense GUI firewall doesn't permit you to use MAC addresses.

        @jonathanlee said in 'arp: writing to routing socket: Operation not permitted':

        I added it in

        Added what ?

        No "help me" PM's please. Use the forum, the community will thank you.
        Edit : and where are the logs ??

        JonathanLeeJ 1 Reply Last reply Reply Quote 1
        • JonathanLeeJ
          JonathanLee @Gertjan
          last edited by JonathanLee

          @gertjan I tried to change my layer 2 address of the pfsense wan port to be the same address as the modem to see if this could resolve my problem. However, this course of action killed the WAN connection. I have resolved this with a different post, thank you for your reply. I was told to contact my ISP to report this and turn off logging same as what you recommended.

          The I added it was I added a static entry to try to resolve this within the DHCP server on the firewall itself for this post.

          Make sure to upvote

          GertjanG 1 Reply Last reply Reply Quote 0
          • GertjanG
            Gertjan @JonathanLee
            last edited by

            @jonathanlee said in 'arp: writing to routing socket: Operation not permitted':

            turn off logging same as what you recommended.

            There is a better solution.

            Turning off logging :


            is a sledge hammer approach.

            You can keep logging for the default rule activated.
            Just added a block rule that doesn't log, and it should block UDP port 68 (DHCP stuff) as you know it exists, but you 'trust' it as it can do no harm except eating up a very small fraction of your WAN band width.
            Other non solicited WAN traffic will still get logged.

            No "help me" PM's please. Use the forum, the community will thank you.
            Edit : and where are the logs ??

            1 Reply Last reply Reply Quote 1
