VLAN Over VPN Works, But How to Handle DNS?
-
@keyser
Thanks for the answer.
When I tried to force the dns on the vlan (10.10.99.0/24) dhcp server the clients were unaware on how to route traffic to 10.2.1.1 or 10.2.2.1 (the 2 dns addresses on the 2 VPN interfaces).
Those routes are unknown. The fw rules create an abstraction for the traffic (the client doesn’t know its routed via vpn).. where clients need instead to be aware of vpn dns routes.
How would u achieve that exactly? -
@iggybuddy6 I’m not sure I understand how your setup is created/working then. How is your pfSense able to reach those DNS servers if it doesn’t know the route to them? If your pfSense know the route to them, your clients should as well if they use pfSense as the default gateway.
-
@keyser
Thanks again for the reply. It was maybe a fw rules issue.V99_VPN uses the 2 VPN servers DNS.
I can now see the traefik client go over vpn dns and seems ok now.Does this look like a good setup to you?
I’m just learning pfsense. Thx a lot
-
@iggybuddy6 It seems to work as intended. I can’t really comment on the setup as I cannot see the whole picture. But I assume everything is as intended as you are also using the ProtonVPN endpoints as DNS servers.
-
@keyser thanks a lot
-
@iggybuddy6 I’m using a very similar setup with NordVPN. You can set the DNS on the DHCP interface settings .
However, that means DNSBL won’t see that traffic if you override. So what I did was leave them blank but then manually set the NordVPN DNS IPs on my TVs and other devices that I want to use the VPN DNS.
This way unbound still see the traffic and dnsbl blocks will work but the dnsleak test will show only the DNS you set manually on each device.
I’m always split between not using DNSBL at all VS using it. But today I’ve settled on keeping the DHCP DNS settings untouched and instead set the VPN DNS manually on each device. Because he VPN will still work even when not using nord’s DNS it’s just that the traffic isn’t hidden completely but the location set by your VPN, Miami, New York, etc will work exactly the same.
-
@hydn thx for the link outlining your setup. I will go through it.
For my use case I care more about privacy (having traffic and dns within the VPN) and I’m currently willing to give up the extra dnsbl checks. I plan to block/redirect anything else (sw/devices) trying to override the VPNs DNS. -
@keyser mmh now it’s not working again. I’m not sure if the issue is with NAT rules. I haven’t changed anything and nslookup go on timeout with state no traffic.
-
Whether you keep DNSBL or not remember that there is malware blocking available via Cloudflare DNS and Quad9. Check them out if you haven’t already. But of course you lose logging, privacy of doing it locally and pfblockers geoIP, category blocking etc.
It’s a lot to give up if you enjoy that data and control.
-
@hydn Appreciate the heads-up.
In general settings, I’m using Quad9 over DoT. The network uses the DNS Resolver with pfBlockerNG and DNSBL, listening on the network interface addresses. This all works fine.
What I’m now trying to do is to isolate part of the network by using a VLAN and route all its traffic—including DNS—exclusively through the VPN. From a privacy perspective having VPN traffic and DNS within the VPN seems to be the safest approach. I’m fine giving up some control and filtering provided by pfBlockerNG and popular public DNS.

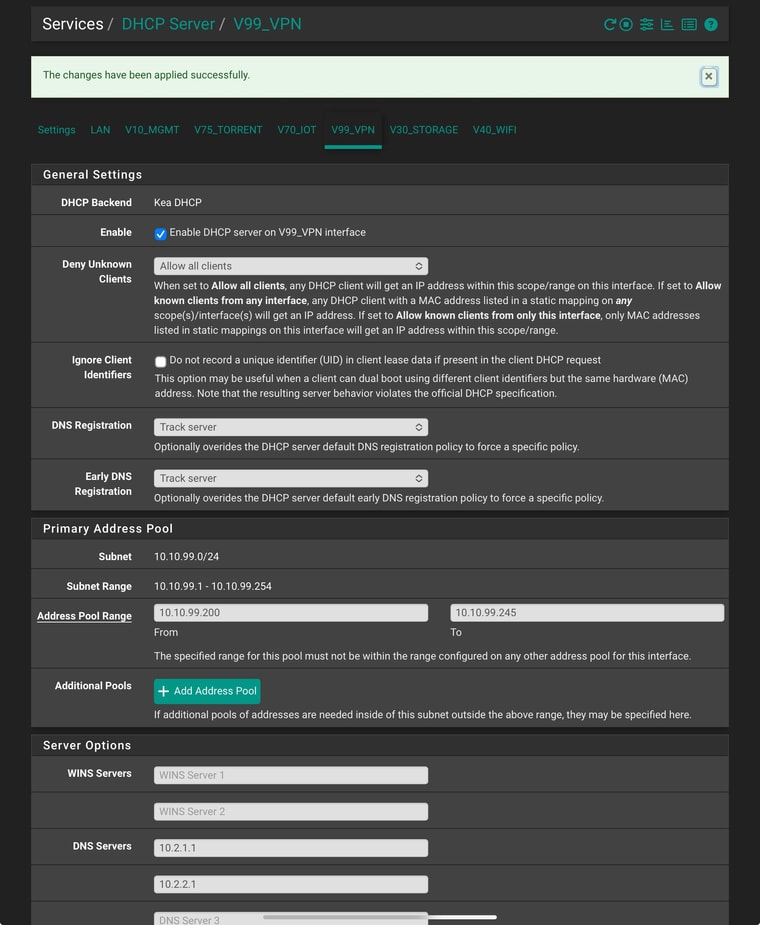

I’m still not quite sure how to set this up properly. I tried configuring the VLAN’s DHCP server to hand out the VPN’s internal DNS IPs (10.2.1.1 and 10.2.2.1) for the 10.10.99.0/24 subnet. It looked like it was working earlier, but now DNS queries are timing out.
I have disabled DNS Resolver on the vlan 99 interface.

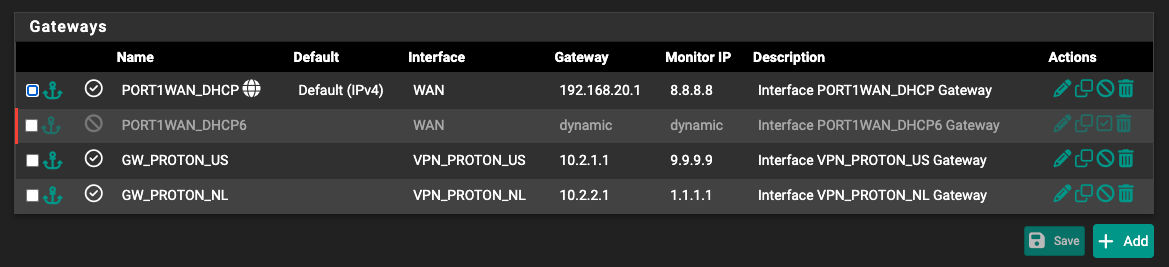

The 2 Gateway VPN IPs are used as dns servers on my host /etc/resolv.conf

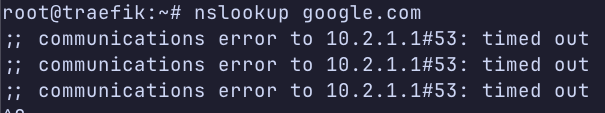

nslookup timeout

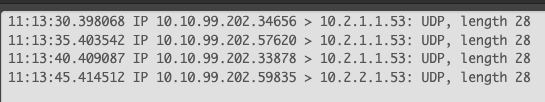

Traffic going out from VLAN to VPN DNS
traffic seems coming back from the VPN (this is correct as I have 1:1 NAT on 10.2.0.2 to 10.2.1.1)
I suppose on the VLAN I should see traffic response coming in from 10.2.1.1 but I do not and that is why I see "timed out".
The nat seems to work I think. I am confused on why the DNS response is not properly routing back to the client

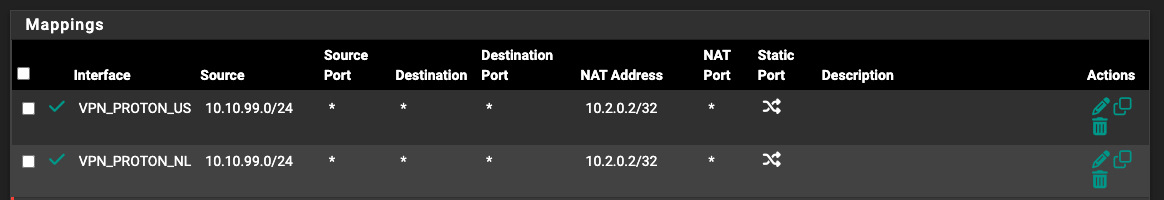

my 1:1 NAT
my outbound
