    6100 Firmware 03.00.00.03t-uc-126

    Scheduled Pinned Locked Moved Official Netgate® Hardware
    4 Posts 2 Posters 92 Views
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • luckman212L
      luckman212 LAYER 8
      last edited by luckman212

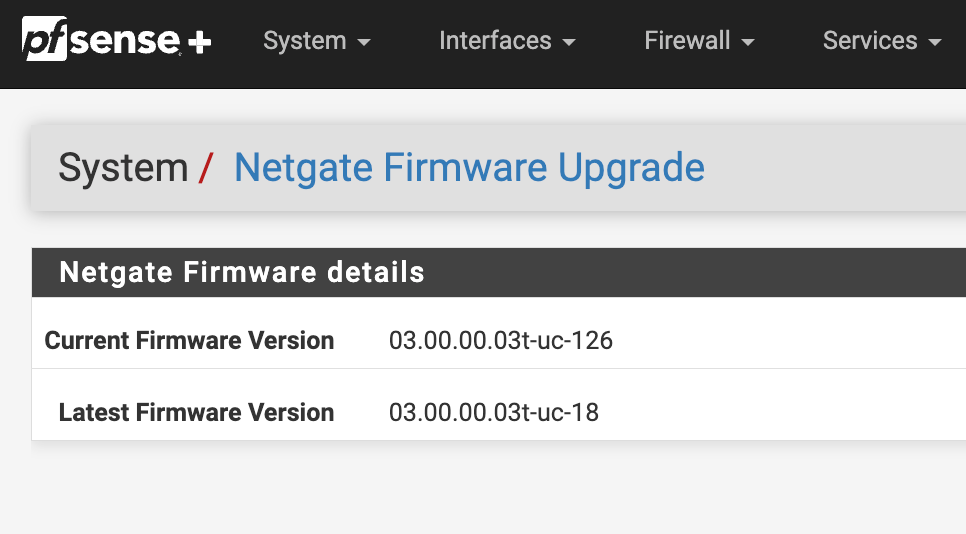

      Updated my 6100 to 25.07 RC today, and just clicking around I noticed a new Firmware seems to have been installed: 03.00.00.03t-uc-126

      Is this expected? I note the "latest" version appears to be an older build (uc-18):

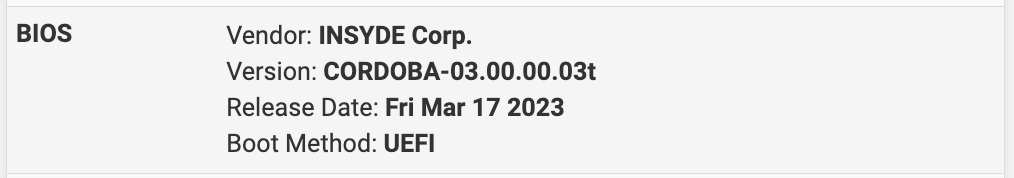

      Also, on my Dashboard, it shows BIOS CORDOBA-03.00.00.03t - with a date of 2023-03-17 - do these BIOS and Firmware versions align?


      1 Reply Last reply Reply Quote 0
      • stephenw10S
        stephenw10 Netgate Administrator
        last edited by

        Hmm, nope. 18 is the latest microcontroller code version.

        [25.07-RC] [admin@6100.stevew.lan]/root: ls -ls /usr/local/share/pfSense-pkg-Netgate_Firmware_Upgrade/roms/
        total 10695
         817 -rw-r--r--  1 root wheel  8388608 Nov 12  2024 ADI_DFF2-01.00.00.17-nodebug.rom
        3257 -rw-r--r--  1 root wheel 16777216 Nov 12  2024 ADI_PLCC-01.00.00.20.bin
        1073 -rw-r--r--  1 root wheel 16777216 Nov 12  2024 ADI_RCC-01.00.00.18-nodebug-16m.rom
         817 -rw-r--r--  1 root wheel  8388608 Nov 12  2024 ADI_RCCVE-01.00.00.17-nodebug.rom
        2361 -rw-r--r--  1 root wheel  8388608 Nov 12  2024 CORDOBA-03.00.00.01-2Ct-uc-15.fd
        2373 -rw-r--r--  1 root wheel  8388608 Nov 12  2024 CORDOBA-03.00.00.03t-uc-18.fd

        [25.07-RC][admin@6100.stevew.lan]/root: sysctl dev.cordbuc.0.version
        dev.cordbuc.0.version: 18


        Try a full power cycle if you haven't already.

        luckman212L 1 Reply Last reply Reply Quote 1
        • luckman212L
          luckman212 LAYER 8 @stephenw10
          last edited by

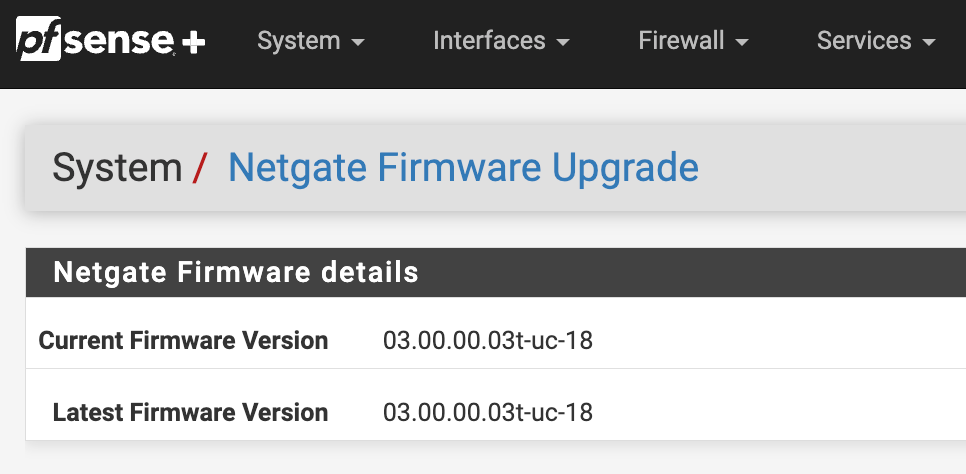

          Thanks Steve, the full power cycle / cold boot got things sorted:


          👍

          1 Reply Last reply Reply Quote 0
          • stephenw10S
            stephenw10 Netgate Administrator
            last edited by

            Nice. Weird though. 😕

            1 Reply Last reply Reply Quote 0
