    WAN2 will not connect

    Scheduled Pinned Locked Moved Routing and Multi WAN
    2100wan2offline
    13 Posts 4 Posters 214 Views 5 Watching
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • GertjanG Offline
      Gertjan @MartynK
      last edited by

      @MartynK said in WAN2 will not connect:

      When I plug the router in to a laptop, yes,

      That laptop, at that moment, was it set to DHCP or did you force a static IPv4 (and gateway and DSNS = 192.168.0.2) ?

      @MartynK said in WAN2 will not connect:

      The link for LAN1 is ...

      The pfSense LAN1 ? That's not related, the pfSense LAN is, up as soon as you hook up a switch or another wired device.
      I do presume your LAN has a static setup (like the default 192.168.1.1) and that the pfSense LAN has DHCP server v4 activated. The devices connected to pfSense LAN, direcly or via a switch, should use DHCP, so they can obtain an Ipv4 lease out of the pfSense DHCPv4 pool. If your laptop was still locked into 192.168.0.1 then it's totally normal that "nothing works".


      If possible, set up (keep ? - as I really presume that DHCP server is there by default) on your "Three 5G router" the DHCPv4 server (on it's "LAN").
      Set the LAN IP of this device to "192.168.0.1".
      From now on, you can select for your pfSense WAN2 interface : "DHCP" as the connection method, and your done. pfSense will receive an IPv4 on the WAN2 interface something between 192.168.0.2 and 192.168.0.x (from the "DHCP server pool from the "Three 5G router").

      No "help me" PM's please. Use the forum, the community will thank you.
      Edit : and where are the logs ??

      M 1 Reply Last reply Reply Quote 0
      • M Offline
        MartynK @Gertjan
        last edited by

        @Gertjan When testing with the laptop, I unplugged the Three broadband from Netgate and plugged it directly in to the laptops network port.

        When I am saying LAN1, this is the port I have selected to use as WAN2

        Network devices are connected to LAN2 via a switch and LAN2 is running DHCP with a gateway IP of 192.168.100.1, so the network is working fine and the internet is accessible via WAN

        Its just WAN2 that I am missing something.

        GertjanG 1 Reply Last reply Reply Quote 0
        • GertjanG Offline
          Gertjan @MartynK
          last edited by Gertjan

          @MartynK

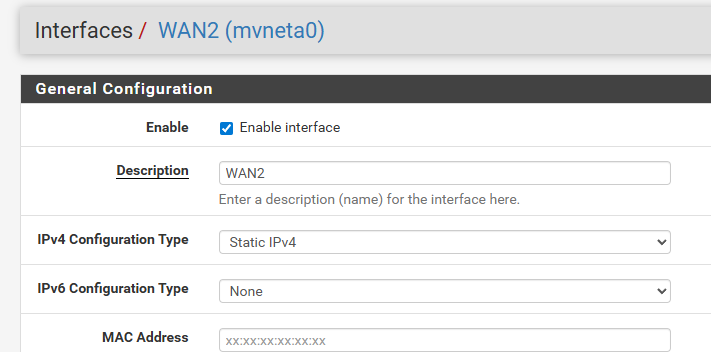

          The pfSense WAN2 (you've called it LAN1) : can you set to :


          and then connect it (pfSense WAN2) to the to "Three 5G router" LAN port, and then check here :



          said in WAN2 will not connect:

          That laptop, at that moment, was it set to DHCP or did you force a static IPv4 (and gateway and DSNS = 192.168.0.2) ?

          ?

          No "help me" PM's please. Use the forum, the community will thank you.
          Edit : and where are the logs ??

          M 1 Reply Last reply Reply Quote 0
          • M Offline
            MartynK @Gertjan
            last edited by

            @Gertjan I have not called in LAN1, I have pluged the cable in to LAN1 and then using that as WAN2

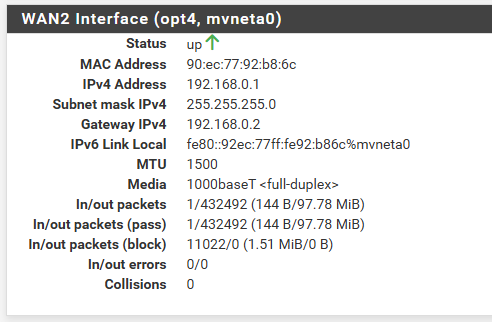

            And this is the current status.


            M 1 Reply Last reply Reply Quote 0
            • M Offline
              MartynK @MartynK
              last edited by

              And then this is what I get for the gateway


              where 192.168.0.2 is the IP address of the Three %G Modem.

              chpalmerC 1 Reply Last reply Reply Quote 0
              • chpalmerC Offline
                chpalmer @MartynK
                last edited by

                @MartynK can you put your modem in bridge mode and just let the wan2 of the PFsense get the address? You would have to put it in DHCP. Works for me with my Netgear modem..

                Triggering snowflakes one by one..
                Intel(R) Core(TM) i5-4590T CPU @ 2.00GHz on an M400 WG box.

                M 1 Reply Last reply Reply Quote 0
                • M Offline
                  MartynK @chpalmer
                  last edited by

                  @chpalmer OK, I have just changed the router to what it calls IP Passthrough which is where the public IP is passed through to pfSense.

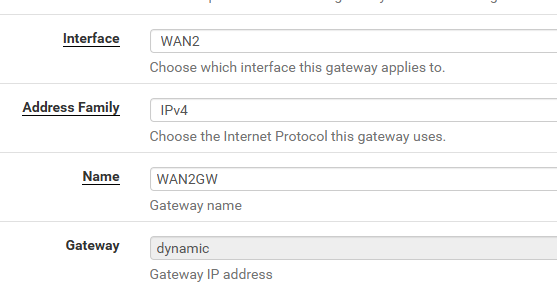

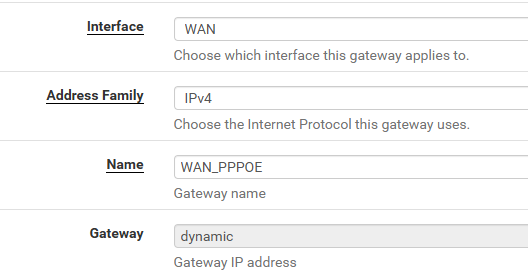

                  Looking at the WAN gateway I can see that the "Gateway" is defined as "dynamic".


                  So I have tried this on WAN2, but it does nothing, the gateway is still showing as offline.


                  The physical cable from the 5G router is plugged in to LAN1 on the router and I configured the WAN2 assignment to use port LAN1


                  I just dont know what else to try.

                  M 1 Reply Last reply Reply Quote 0
                  • M Offline
                    MartynK @MartynK
                    last edited by

                    So deleting the gateway and recreating it I have managed to get it online,


                    But its not showing the public IP like WAN does and I think the monitoring test is going via the WAN instead of WAN2


                    chpalmerC 1 Reply Last reply Reply Quote 0
                    • chpalmerC Offline
                      chpalmer @MartynK
                      last edited by chpalmer

                      @MartynK It will show what you have in there for monitoring.

                      Not knowing who your carrier is I can only guess that you are behind CGNAT. But I could be wrong.

                      Mine is Verizon and I get addresses in the 100.x.x.x range. My gateway right now for my WAN 2 is 100.84.82.1 which is apparently very close as that gateway reports 1.1ms latency. My WAN 2 address is 100.84.82.61. You will not be able to ping it from outside so I do not care that anyone knows it. Changes quite often anyways. BTW- Look up the MTU for your carrier.. Verizon should be set for 1400 according to what Ive researched.

                      Since WAN2 for me is always secondary I do not care that it might be pinging something local. I have come back later when I did ping one of the routers in my traceroute to find that it no longer responded even though the modem was still online.

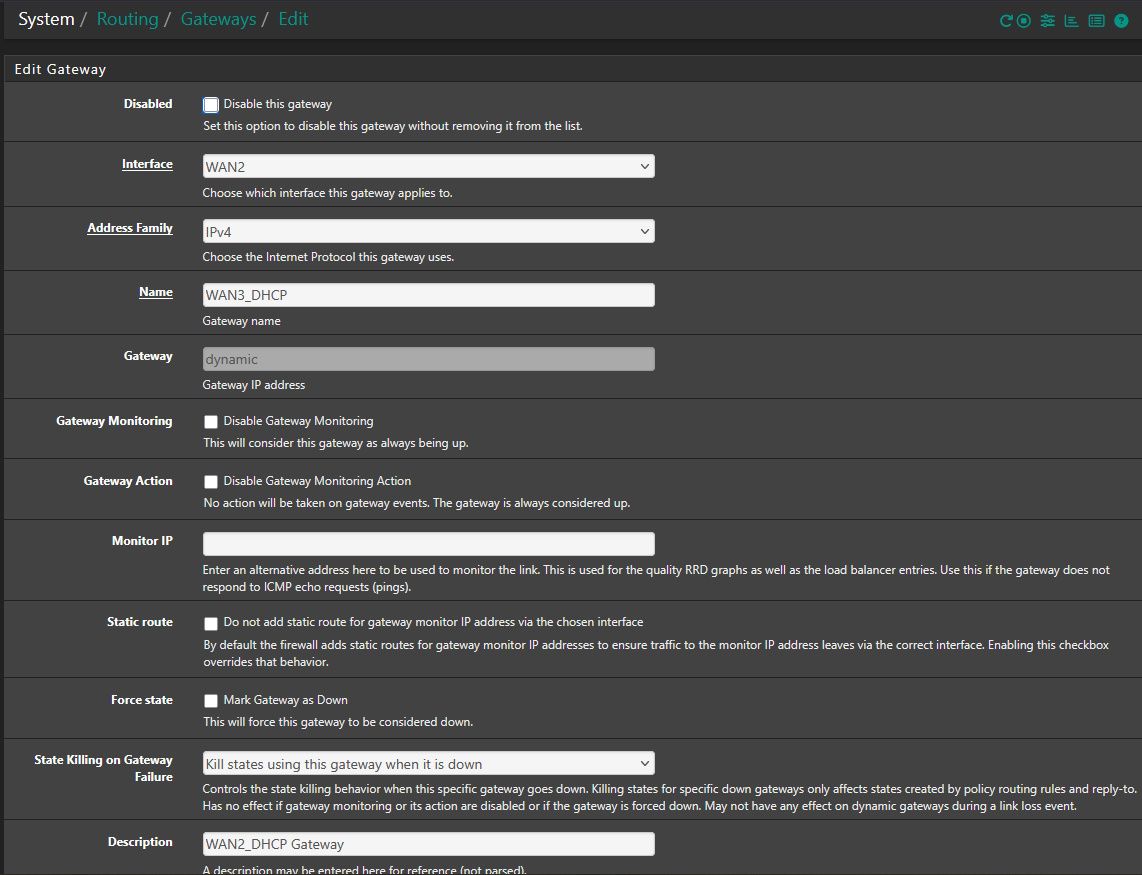

                      This is my gateway.. It was at one time a WAN 3 here so the name cannot be changed unless I start over with it which I haven't done. But ignore that.


                      p.s. you should still be able to reach your modem by its LAN address as well.. Mine is 192.168.5.1 and I look at it fairly often to check its signal strength.

                      Triggering snowflakes one by one..
                      Intel(R) Core(TM) i5-4590T CPU @ 2.00GHz on an M400 WG box.

                      1 Reply Last reply Reply Quote 0
                      • T Offline
                        tman222
                        last edited by

                        Another way to check outside connectivity: With the 5G modem connected to pfSense, if you go to Diagnostics / Ping and select WAN2 as source address, are you able to reach (ping) outside websites? If you are able to ping websites, but the Gateway is still showing as offline (when you are using an outside monitoring IP such as 8.8.4.4), you may need to adjust the Data Payload parameter for dpinger from the default 1 to a larger value in the WAN2 gateway's advanced settings under System / Routing / Gateways.

                        https://docs.netgate.com/pfsense/en/latest/routing/gateway-configure.html#advanced-gateway-settings

                        Hope this helps.

                        1 Reply Last reply Reply Quote 0
