How to read CPU temperature on 1100, 2100, and 4200?

Joe0x7F

Thanks, Everyone! I'm trying to get a baseline, so I'll have that information for troubleshooting later.

It may not be possible for them to get that hot. ;)

LOL. Sure.

Gertjan

@Joe0x7F said in How to read CPU temperature on 1100, 2100, and 4200?:

I did not see another command

I'll highlight :

But why looking, as it seems that a RISC processor doesn't have/need a temperature measurement device. These use so little power that they can't heat.

Intel/AMD processors are called "irons" for a reason.

stephenw10

Well I wouldn't agree that they can't get hot enough. They definitely can! But they don't have a sensor that FreeBSD can usefully read.

FSC830

@SteveITS said in How to read CPU temperature on 1100, 2100, and 4200?:

@Joe0x7F I don't think the ARM devices have a temperature. It may not be possible for them to get that hot. ;)

It does show on the 4200 though.

At least the 3100 do have a sensor.

Regards

rduarteoliveira

This post is deleted!

Gertjan

@rduarteoliveira

Guidance ?

@patient0 said in How to read CPU temperature on 1100, 2100, and 4200?:

no hardware temperature sensor for 2100 and 1100, as stephenw10 explained in another post (use the search, Luke):

the others do have a sensor.

rduarteoliveira

@Gertjan Hi! Sorry, I am reply by mistake.

rduarteoliveira

@OpIT-GmbH I hope you’re doing well. I’m having some difficulties configuring PRTG and would really appreciate your help with setting up a temperature graph.

OpIT GmbH

@rduarteoliveira

First you need to setup NET-SNMP

We are using NET-SNMP und PRTG

CPU_Temperatur
/sbin/sysctl -n dev.cpu.0.temperature | tr -d C

System_Updates
/usr/local/sbin/pfSense-upgrade -c

Package_Updates
/usr/sbin/pkg upgrade

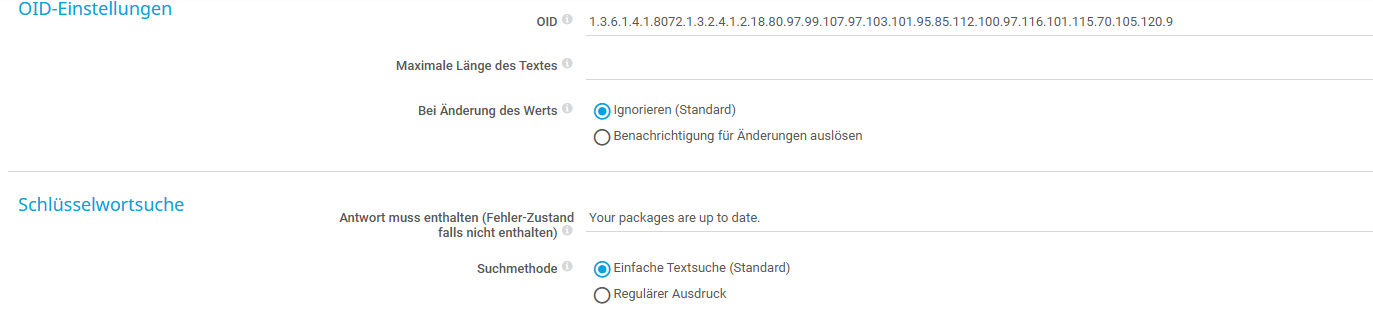

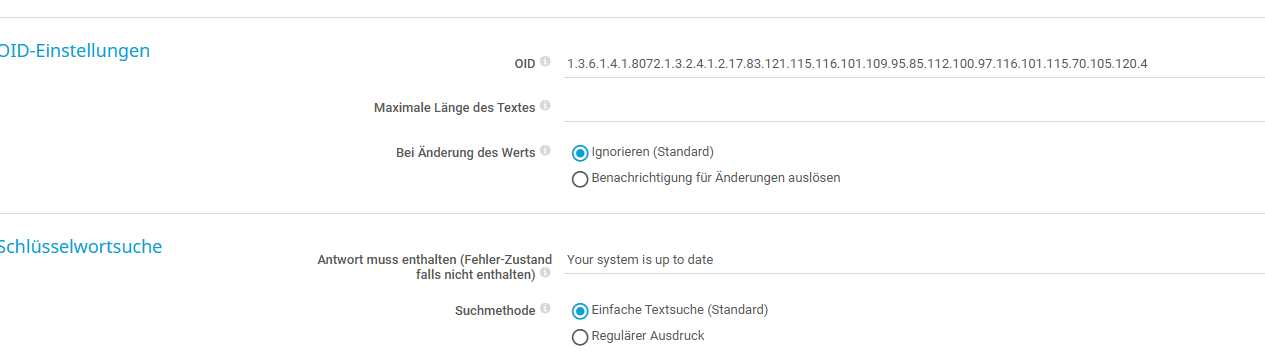

Then you Setup SNMP Sensor in PRTG

Temp: We are using NET-SNMP und PRTG with a Custom OID, die OID depends on your Netgate. Here is what we use for 4100, witch one are u using?

Temperature:
1.3.6.1.4.1.8072.1.3.2.4.1.2.17.67.80.85.95.84.101.109.112.101.114.97.116.117.114.70.105.120.1

System Updates:
1.3.6.1.4.1.8072.1.3.2.4.1.2.17.83.121.115.116.101.109.95.85.112.100.97.116.101.115.70.105.120.4

Package Updates: 1.3.6.1.4.1.8072.1.3.2.4.1.2.18.80.97.99.107.97.103.101.95.85.112.100.97.116.101.115.70.105.120.9

rduarteoliveira

Great! I see what you’ve set up. I’m using custom hardware, and in addition, I’ve taken the following steps for the configuration and works!:

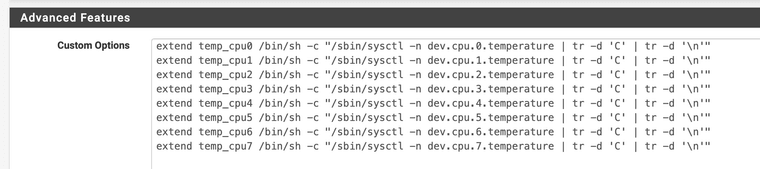

1- Add the following lines to your snmpd.conf file (Multiples CPU cores):

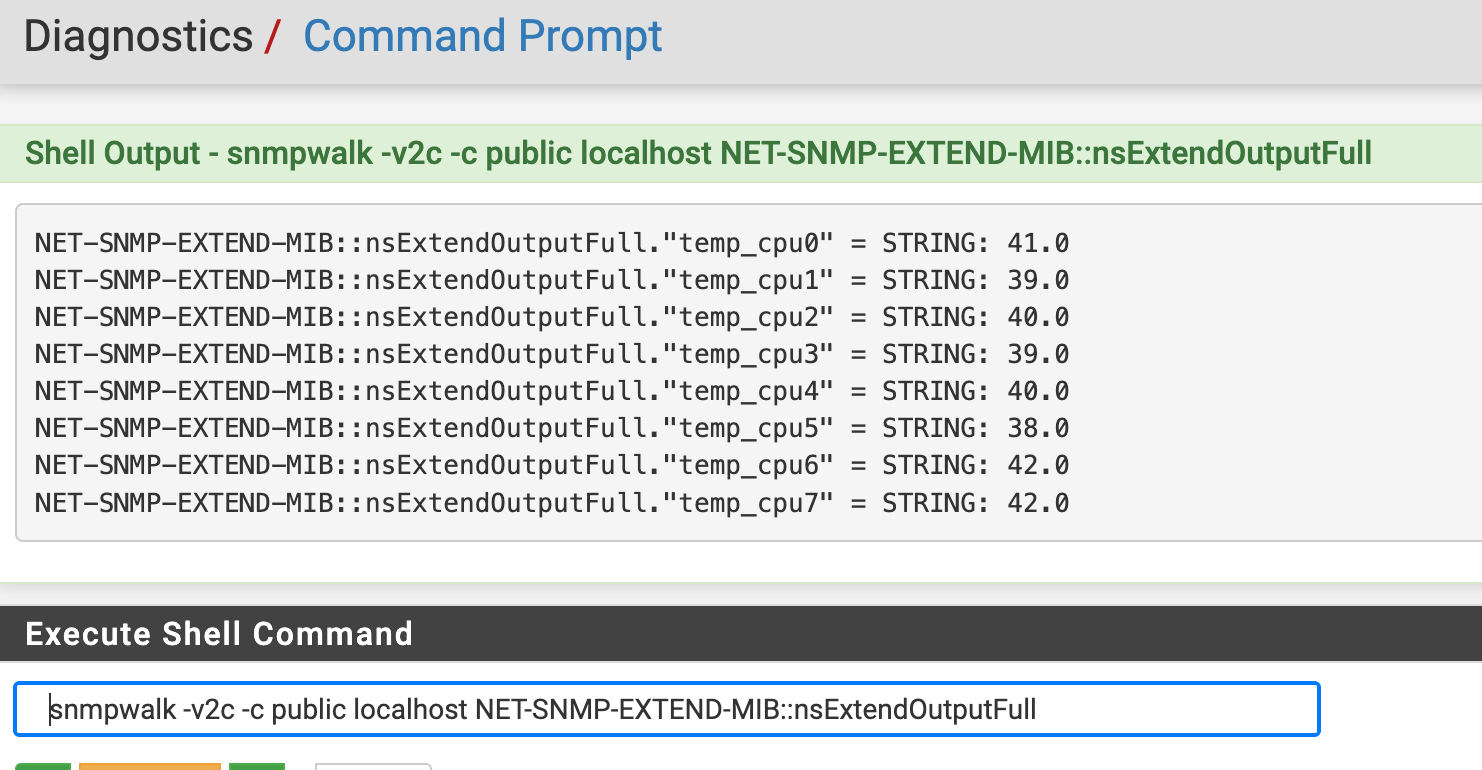

2- Verify the return string information.

command:
snmpwalk -v2c -c public localhost NET-SNMP-EXTEND-MIB::nsExtendOutputFull

Result:
NET-SNMP-EXTEND-MIB::nsExtendOutputFull."temp_cpu0" = STRING: 39.0
NET-SNMP-EXTEND-MIB::nsExtendOutputFull."temp_cpu1" = STRING: 40.0
NET-SNMP-EXTEND-MIB::nsExtendOutputFull."temp_cpu2" = STRING: 37.0
NET-SNMP-EXTEND-MIB::nsExtendOutputFull."temp_cpu3" = STRING: 38.0
NET-SNMP-EXTEND-MIB::nsExtendOutputFull."temp_cpu4" = STRING: 37.0
NET-SNMP-EXTEND-MIB::nsExtendOutputFull."temp_cpu5" = STRING: 38.0
NET-SNMP-EXTEND-MIB::nsExtendOutputFull."temp_cpu6" = STRING: 41.0
NET-SNMP-EXTEND-MIB::nsExtendOutputFull."temp_cpu7" = STRING: 42.0

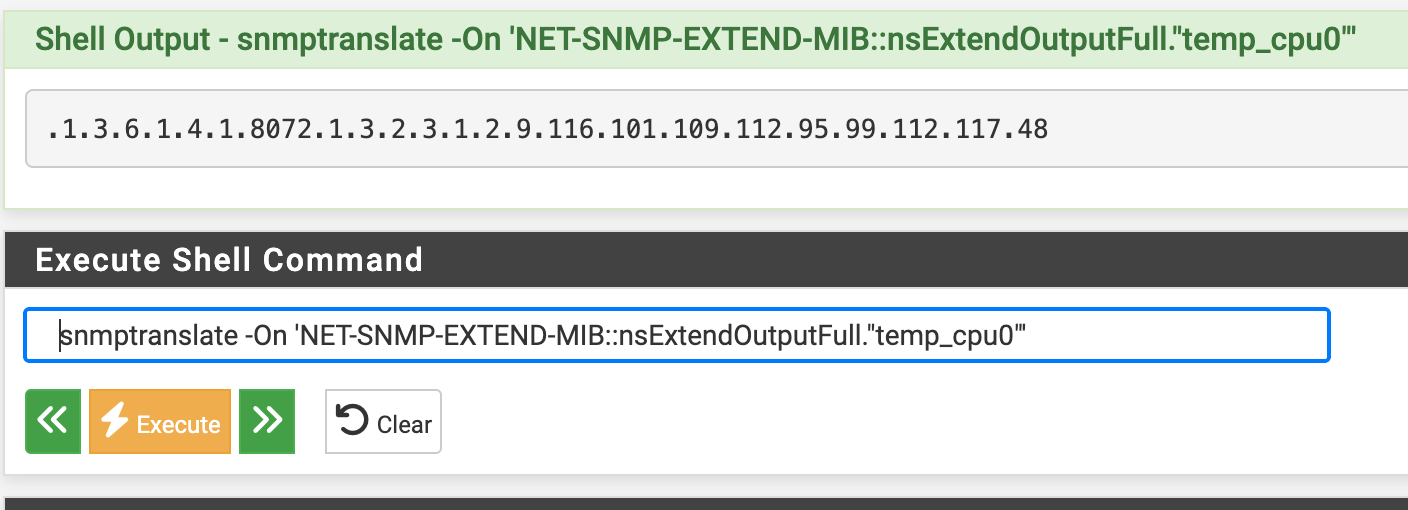

3- Get the OID value corresponding to each individual CPU core.

Command:
snmptranslate -On 'NET-SNMP-EXTEND-MIB::nsExtendOutputFull."temp_cpu0"'

Result:
.1.3.6.1.4.1.8072.1.3.2.3.1.2.9.116.101.109.112.95.99.112.117.48

Repeat for each CPU Core to have 08 OIDs.

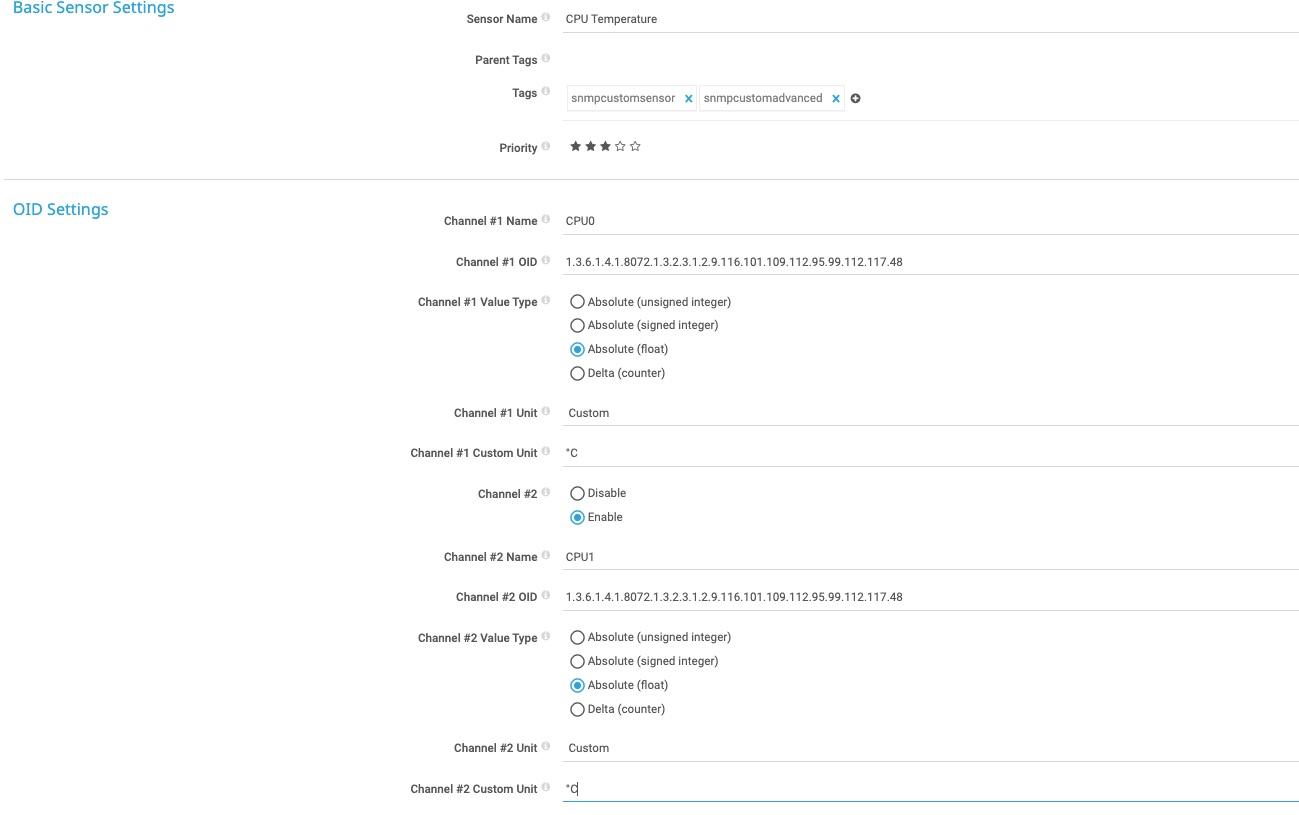

On the PRTG side, perform the following steps:

1- Add SNMP Custom Advanced

2- Fill up the information for each CPU:

Sensor Type: SNMP Custom Advanced (supports up to 10 channels)

Channel 1: Name CPU0, OID = numeric for "temp_cpu0", Unit = °C, Value Type = Float/Gauge

Channel 2: Name CPU1, OID = numeric for "temp_cpu1", Unit = °C, Value Type = Float/Gauge

… up to CPU7

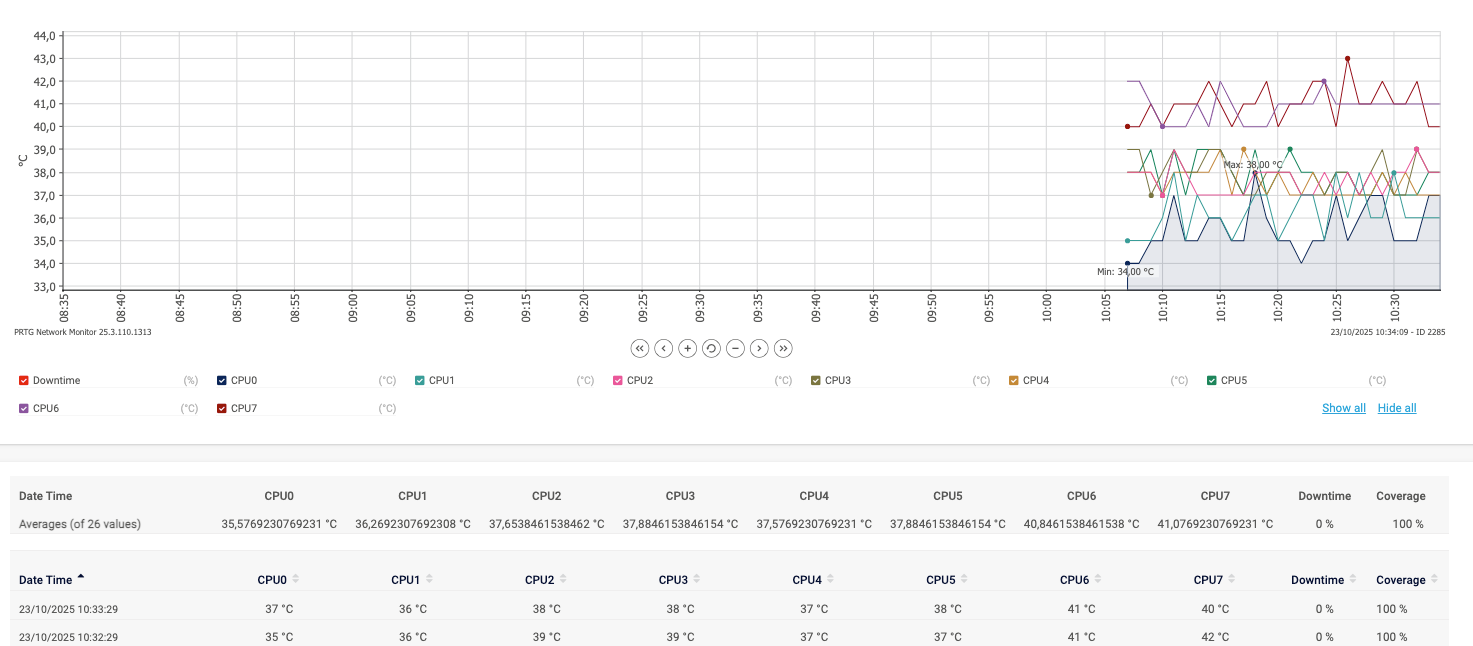

3- The graph is populated for each CPU core.
