[Solved] Multiple CP Not Working

[robertolw]

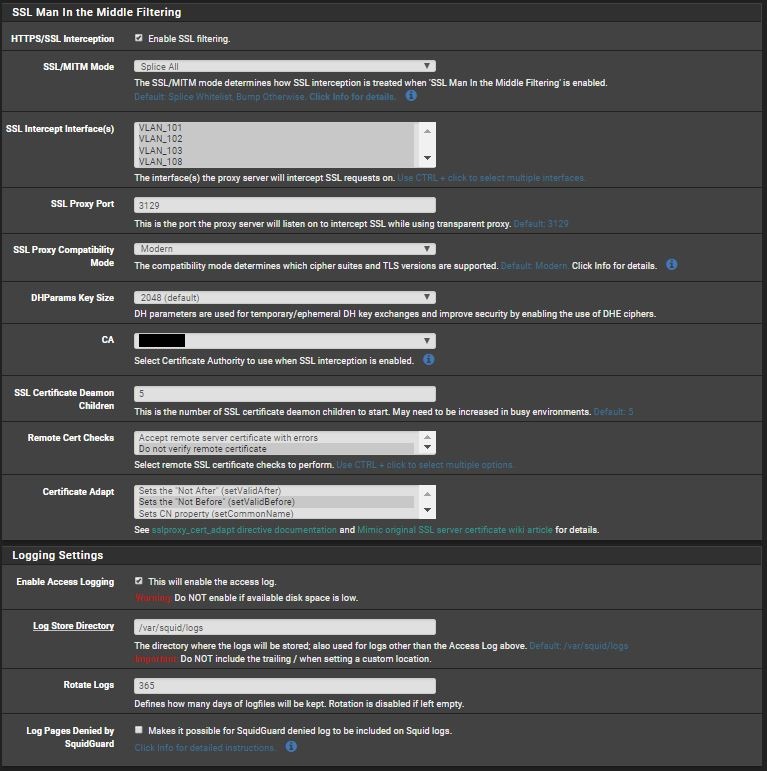

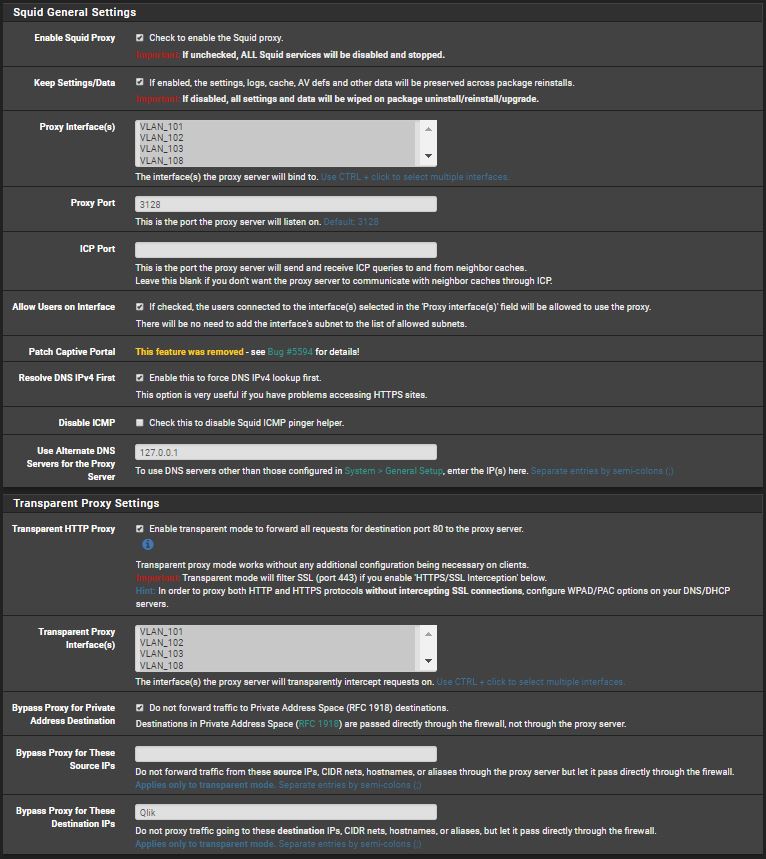

Hi, i have a CP setup up and working but when i add a new one to a different VLAN the new Captive portal is able to authenticate but squid deny connection 403.

[jimp]

That's a squid problem, not a captive portal problem. Try posting on the Cache/Proxy board.

[robertolw]

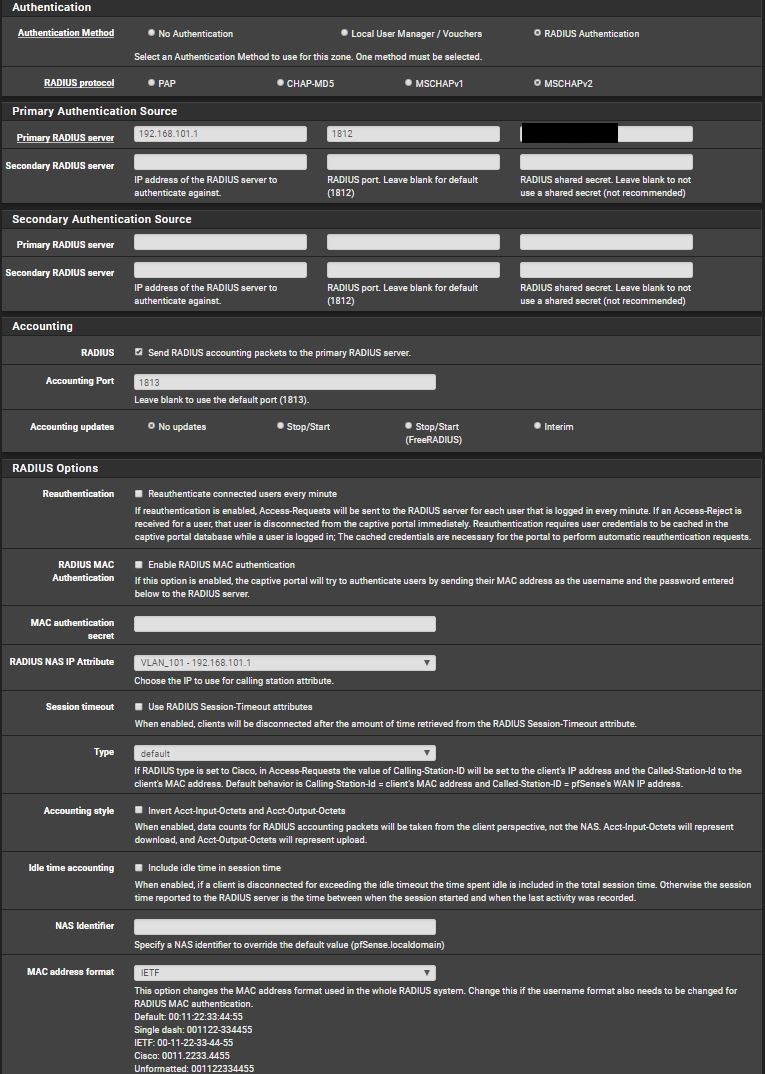

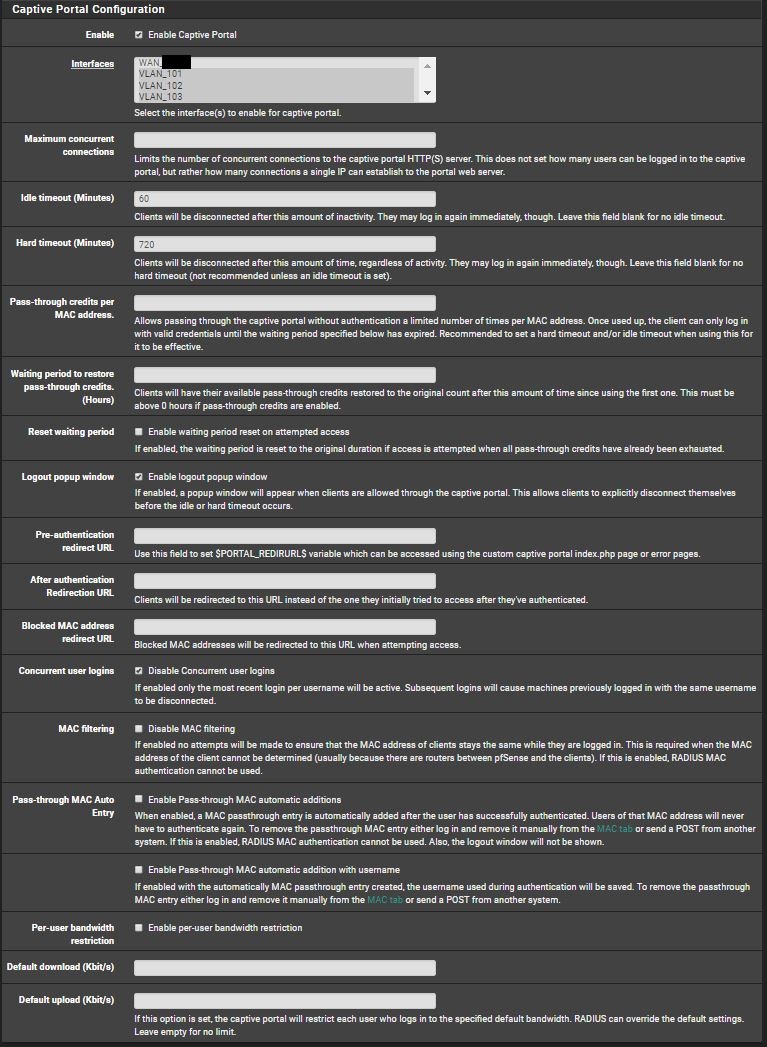

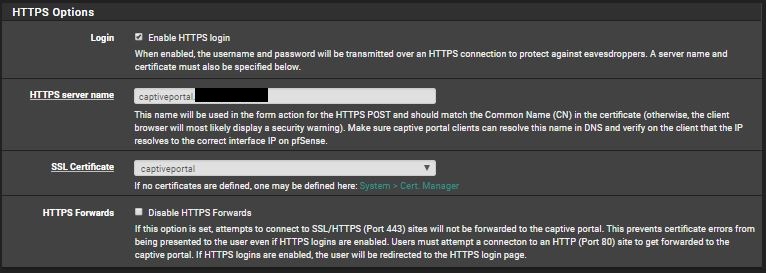

Vlan 101-103 are on “CP1” and Vlan 108 is on “CP2”

[Gertjan]

Why did you post your CP settings of one of your CP zones ?

@jimp said in Multiples CP Not Working:

That’s a squid problem, not a captive portal problem.

[robertolw]

[magokbas]

The problem is that the code in /usr/local/bin/check_ip.php is incorrect.
del /usr/local/bin/check_ip.php and use the following code.

#!/usr/local/bin/php-cgi -q
<?php
/*
 * check_ip.php
 *
 * part of pfSense (https://www.pfsense.org)
 * Copyright (c) 2016-2017 Rubicon Communications, LLC (Netgate)
 * Copyright (c) 2013-2016 Marcello Coutinho
 * All rights reserved.
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 * http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

require_once("config.inc");
require_once("globals.inc");
error_reporting(0);
global $g;
// stdin loop
if (!defined(STDIN)) {
	define("STDIN", fopen("php://stdin", "r"));
}
if (!defined(STDOUT)) {
	define("STDOUT", fopen('php://stdout', 'w'));
}
while (!feof(STDIN)) {
	$check_ip = trim(fgets(STDIN));
	$dbs = glob("{$g['vardb_path']}/captiveportal*.db");
	$status = NULL;

	foreach ($dbs as $db) {
		if(!strpos($db, "_radius")) {
			$status = squid_check_ip($db, $check_ip);
			if (isset($status)){
				break;
			}
		}
	}
	if (!is_null($status)) {
		fwrite(STDOUT, "OK user={$status}\n");
	} else {
		fwrite(STDOUT, "ERR\n");
	}
}

function squid_check_ip($db, $check_ip) {
	exec("/usr/local/bin/sqlite3 {$db} \"SELECT ip FROM captiveportal WHERE ip='{$check_ip}'\"", $ip);
	if ($check_ip == $ip[0]) {
		exec("/usr/local/bin/sqlite3 {$db} \"SELECT username FROM captiveportal WHERE ip='{$check_ip}'\"", $user);
		return $user[0];
	}
}

?>

[Gertjan]

Can't find /usr/local/bin/check_ip.php
It's dealing with files related to the captive portal.

Is this a file part of a package ?

[magokbas]

@gertjan With squid. What is your pfsense version?

[Gertjan]

The latest :
2.4.3-RELEASE-p1 (amd64)
built on Thu May 10 15:02:52 CDT 2018
FreeBSD 11.1-RELEASE-p10

[magokbas]

@gertjan If you can not find this file, you do not have squid installed

[Gertjan]

I know.
This thread talks about a Squid problem, not a captive portal problem.
See also what @jimp said ;)

[robertolw]

@magokbas Thanks, it worked!
