New User... Slow Upload Speed

Scheduled Pinned Locked Moved General pfSense Questions
19 Posts 5 Posters 2.5k Views
Loading More Posts
  • Oldest to Newest
  • Newest to Oldest
  • Most Votes
Reply
  • Reply as topic
Log in to reply
This topic has been deleted. Only users with topic management privileges can see it.
  • P
    Patpop
    last edited by Jul 16, 2018, 10:59 PM

    Hi all,

    I am wondering why my upload speed in my PFSense box is slow.
    I am configuring my PFSense box and have ran a speedtest on ookla.

    My Ping 11ms and download 192.77 Mbps are OK but my upload speed is really low (0.8 Mbps).
    Currently I have my old network running in parallel and the result are pretty much the same except I get 19.29 Mbps upload. (as expected)
    I have a 200/20 Mbps connection. So I guess I can rule out my ISP.

    I browsed this forum and found that the MTU could cause this. So I determined the max MTU before fragmentation to be 1472 thus I have set 1500 in the WAN interface page.

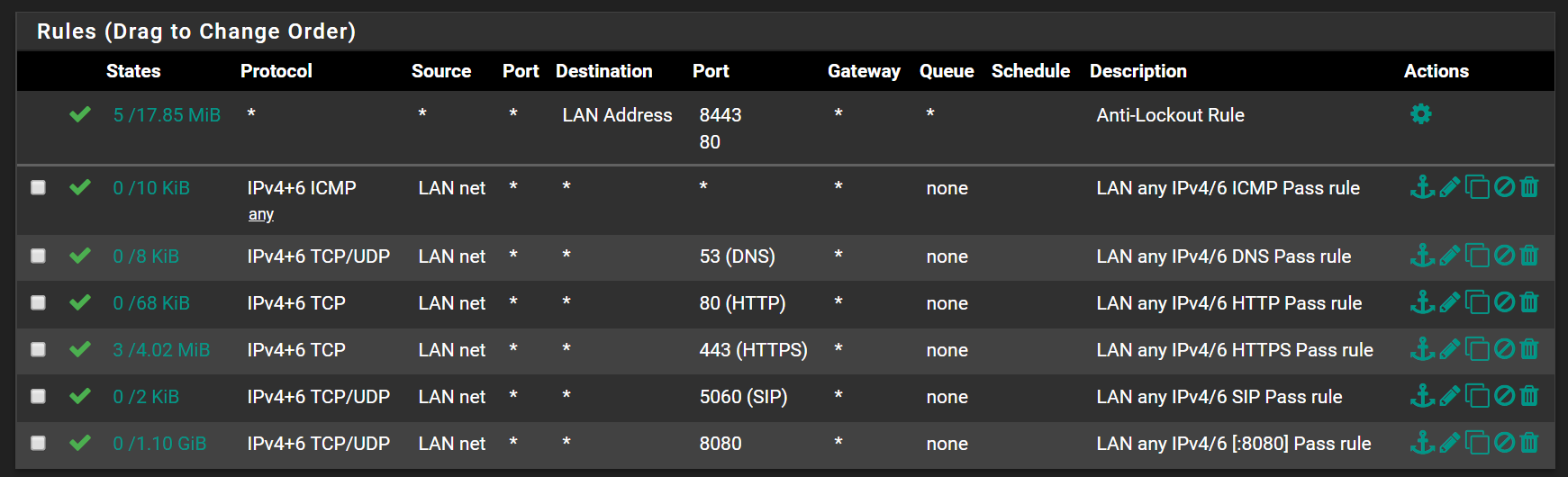

    These are my LAN firewall rules. No traffic shaping done.


    I also tried different interface combinations (since I have 6 in total) for WAN and LAN but they all result in the same low upload speed.

    I started from a fresh install running version 2.4.3_1.
    System : Gigabyte z370n-wifi, i5 8500, 8Gb DDR4 and Intel i350-t4 NIC.

    Thanks.

    1 Reply Last reply Reply Quote 0
    • J
      JKnott
      last edited by Jul 17, 2018, 12:31 AM

      What type of Internet connection do you have? 1500 is common for cable, but ADSL usually requires 1492.

      PfSense running on Qotom mini PC
      i5 CPU, 4 GB memory, 32 GB SSD & 4 Intel Gb Ethernet ports.
      UniFi AC-Lite access point

      I haven't lost my mind. It's around here...somewhere...

      1 Reply Last reply Reply Quote 0
      • P
        Patpop
        last edited by Patpop Jul 17, 2018, 6:24 AM Jul 17, 2018, 6:04 AM

        I have cable... determined the MTU using the ping method.

        Ping www.google.be -f -l 1472 is the highest value ping command without fragmentation.

        1 Reply Last reply Reply Quote 0
        • J
          JKnott
          last edited by Jul 17, 2018, 9:38 AM

          One other thing, a slightly smaller MTU will not cause a significant decrease. The problem likely lies elsewhere.

          PfSense running on Qotom mini PC
          i5 CPU, 4 GB memory, 32 GB SSD & 4 Intel Gb Ethernet ports.
          UniFi AC-Lite access point

          I haven't lost my mind. It's around here...somewhere...

          1 Reply Last reply Reply Quote 0
          • H
            heper
            last edited by Jul 17, 2018, 10:14 AM

            Wiring issue? Duplex issue?colored text

            1 Reply Last reply Reply Quote 0
            • P
              Patpop
              last edited by Patpop Jul 18, 2018, 5:46 AM Jul 17, 2018, 2:26 PM

              Found the problem. Purchased 5 cat7 patch cables. Tested them all with a wire ethernet connection tester and all were fine but 1 of them fails somehow when in use. Replaced it with an other one and the issue is solved. Thanks for all the help.

              1 Reply Last reply Reply Quote 0
              • J
                JKnott
                last edited by Jul 17, 2018, 8:24 PM

                One thing, CAT 7 cable is not needed. CAT 5e is rated at 1 Gb for 100 metres, so a short 5e patch cord should certainly be good enough.

                PfSense running on Qotom mini PC
                i5 CPU, 4 GB memory, 32 GB SSD & 4 Intel Gb Ethernet ports.
                UniFi AC-Lite access point

                I haven't lost my mind. It's around here...somewhere...

                1 Reply Last reply Reply Quote 0
                • P
                  Patpop
                  last edited by Jul 17, 2018, 8:26 PM

                  I know cat7 is overkill but Price difference was not That high compared to cat6.

                  J 1 Reply Last reply Jul 18, 2018, 12:57 AM Reply Quote 0
                  • J
                    JKnott @Patpop
                    last edited by Jul 18, 2018, 12:57 AM

                    @patpop said in New User... Slow Upload Speed:

                    I know cat7 is overkill but Price difference was not That high compared to cat6.

                    How about compared to 5e?

                    PfSense running on Qotom mini PC
                    i5 CPU, 4 GB memory, 32 GB SSD & 4 Intel Gb Ethernet ports.
                    UniFi AC-Lite access point

                    I haven't lost my mind. It's around here...somewhere...

                    1 Reply Last reply Reply Quote 0
                    • J
                      johnpoz LAYER 8 Global Moderator
                      last edited by johnpoz Jul 18, 2018, 1:13 AM Jul 18, 2018, 1:12 AM

                      There is no reason for cat 6 or 6a or 7... 5 and 5e is fine for gig.. Its right in the spec.. When gig came out the point of it was to be able to run it over existing cable - which was 5.. There would be zero reason to run 6 or 6a or for that matter 7 for this users issue. And it sure is not the reason that they are not able to get gig.

                      If he picked up 7 that is fine, but it was for sure not needed, and really for a patch cable it was just wasted extra money be it 1 penny or 10$ difference.

                      An intelligent man is sometimes forced to be drunk to spend time with his fools
                      If you get confused: Listen to the Music Play
                      Please don't Chat/PM me for help, unless mod related
                      SG-4860 24.11 | Lab VMs 2.8, 24.11

                      J 1 Reply Last reply Jul 18, 2018, 9:33 AM Reply Quote 0
                      • J
                        JKnott @johnpoz
                        last edited by JKnott Jul 18, 2018, 9:36 AM Jul 18, 2018, 9:33 AM

                        @johnpoz said in New User... Slow Upload Speed:

                        When gig came out the point of it was to be able to run it over existing cable - which was 5.

                        Yep, Gb was designed before 5e, so works fine on 5. I really get annoyed at those who say you need 6 or 7, when plain old 5 is good enough. I have cabled some offices with CAT 6, but there they might eventually go to 10 Gb, though it's more likely they'd be rewiring sooner. Of course, this sort of nonsense isn't limited to cable. I've heard plenty of other nonsense over the years.

                        BTW, as for existing cable, there's a bit of interesting history with StarLAN, which became 10baseT and how it was designed to work over existing CAT 3 phone cable, along side phones.

                        PfSense running on Qotom mini PC
                        i5 CPU, 4 GB memory, 32 GB SSD & 4 Intel Gb Ethernet ports.
                        UniFi AC-Lite access point

                        I haven't lost my mind. It's around here...somewhere...

                        1 Reply Last reply Reply Quote 0
                        • P
                          Patpop
                          last edited by Jul 18, 2018, 11:26 AM

                          I just thought why not buy the CAT7 cable... That way I kinda future proved my cable collection 😁 ...

                          Anyway, thanks for all the help. Really nice these is a lot of support, even for new users like me.
                          Thanks again.

                          J 1 Reply Last reply Jul 18, 2018, 8:04 PM Reply Quote 0
                          • J
                            JKnott @Patpop
                            last edited by Jul 18, 2018, 8:04 PM

                            @patpop said in New User... Slow Upload Speed:

                            I just thought why not buy the CAT7 cable... That way I kinda future proved my cable collection 😁 ...

                            Anyway, thanks for all the help. Really nice these is a lot of support, even for new users like me.
                            Thanks again.

                            Maybe you want to read this article.:

                            "As of 2017 there is no equipment that has connectors supporting the Class F (Category 7) channel.

                            Category 7 is not recognized by the TIA/EIA."

                            Many people advocate something like this, without knowing the details. Last year, I was at a customer's site. They had a Cisco switch and CAT 6 cabling. She got annoyed that I used CAT 5e to connect my computer to the switch. She seemed to think that would drag down the entire network, as she didn't realize that 5e was good enough and also, every port on a switch was an independent circuit.

                            The latest O;Reilly Ethernet book has a lot of useful info on this.

                            PfSense running on Qotom mini PC
                            i5 CPU, 4 GB memory, 32 GB SSD & 4 Intel Gb Ethernet ports.
                            UniFi AC-Lite access point

                            I haven't lost my mind. It's around here...somewhere...

                            1 Reply Last reply Reply Quote 0
                            • J
                              johnpoz LAYER 8 Global Moderator
                              last edited by Jul 18, 2018, 8:23 PM

                              @jknott said in New User... Slow Upload Speed:

                              She got annoyed that I used CAT 5e to connect my computer to the switch.

                              Who was she exactly? Was she good looking? hehehe Clearly her technical expertise was not much involved in getting the job ROFL ;)

                              An intelligent man is sometimes forced to be drunk to spend time with his fools
                              If you get confused: Listen to the Music Play
                              Please don't Chat/PM me for help, unless mod related
                              SG-4860 24.11 | Lab VMs 2.8, 24.11

                              1 Reply Last reply Reply Quote 0
                              • J
                                JKnott
                                last edited by Jul 19, 2018, 12:42 AM

                                @johnpoz said in New User... Slow Upload Speed:

                                Who was she exactly? Was she good looking? hehehe Clearly her technical expertise was not much involved in getting the job ROFL ;)

                                It was a vet clinic and her husband was the vet. Apparently he was an expert because he read some magazines. ;-)

                                She wasn't bad looking though.

                                PfSense running on Qotom mini PC
                                i5 CPU, 4 GB memory, 32 GB SSD & 4 Intel Gb Ethernet ports.
                                UniFi AC-Lite access point

                                I haven't lost my mind. It's around here...somewhere...

                                1 Reply Last reply Reply Quote 0
                                • J
                                  johnpoz LAYER 8 Global Moderator
                                  last edited by Jul 19, 2018, 9:55 AM

                                  Ah... Ok makes more sense now. It was your typical user not someone in IT at some company location..

                                  An intelligent man is sometimes forced to be drunk to spend time with his fools
                                  If you get confused: Listen to the Music Play
                                  Please don't Chat/PM me for help, unless mod related
                                  SG-4860 24.11 | Lab VMs 2.8, 24.11

                                  1 Reply Last reply Reply Quote 0
                                  • H
                                    Harvy66
                                    last edited by Jul 20, 2018, 3:24 AM

                                    My cats don't chew on braided cables and nearly all braided cables on Amazon are CAT7. Which sucks because I don't want STP.

                                    J 1 Reply Last reply Jul 20, 2018, 9:38 AM Reply Quote 0
                                    • J
                                      JKnott @Harvy66
                                      last edited by Jul 20, 2018, 9:38 AM

                                      @harvy66 said in New User... Slow Upload Speed:

                                      My cats don't chew on braided cables

                                      Are they named CAT 5, CAT 6 etc.? :-)

                                      PfSense running on Qotom mini PC
                                      i5 CPU, 4 GB memory, 32 GB SSD & 4 Intel Gb Ethernet ports.
                                      UniFi AC-Lite access point

                                      I haven't lost my mind. It's around here...somewhere...

                                      H 1 Reply Last reply Jul 20, 2018, 12:06 PM Reply Quote 0
                                      • H
                                        Harvy66 @JKnott
                                        last edited by Jul 20, 2018, 12:06 PM

                                        @jknott said in New User... Slow Upload Speed:

                                        @harvy66 said in New User... Slow Upload Speed:

                                        My cats don't chew on braided cables

                                        Are they named CAT 5, CAT 6 etc.? :-)

                                        Coincidentally, we're one shy of our 7th cat... Even the braided cables will no longer be safe. Colored split-loom it is. They don't chew on split-loom, but I hate how it looks.

                                        1 Reply Last reply Reply Quote 0
