    Disappointing sub Gb throughput using server hardware.

    Scheduled Pinned Locked Moved General pfSense Questions
    20 Posts 6 Posters 1.7k Views
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • S
      Superfish1000
      last edited by

      I've been struggling with this for a while now and I'm not really sure what to do at this point. I've done a lot of reading on different threads but haven't found an actual answer so far.

      I've been trying to achieve anything approaching 1Gb either from a LAN device through the firewall or TO the firewall(iperf3 on the firewall). Maybe I've configured something wrong. I'm really not sure. I will gladly post settings, just let me know what.

      I first really noticed this when I started trying to use Squid caching and wasn't hitting a good speed consistently on cached data that I would otherwise expect to be served at 1Gb.

      Killing the common stupid responses I've seen.

      • You need "~Server Hardware~" : I have Server Hardware.
        My pfSense box is a Supermicro X8DTL-3F board with dual Xeon L5640 (6Core x 6Thread x 2 @ 2.27GHz) CPUs and 8GB of ECC DDR3.
        NICs are dual Intel 82574L Gigabit. (Built into the board)
        The Sqauid cache is stored on a ZFS pool with 1TB HDD with a 120GB SSD cache drive.

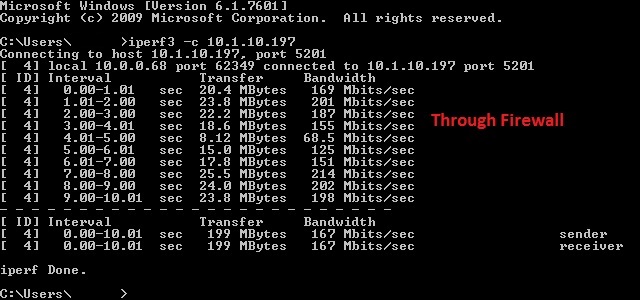

      • You shouldn't use iperf3 on the router, test through the router. : I did. No significant difference.
        I figure there is probably a reason for this suggestion but the whole point is that I want to be able to do network caching on the box as well and it's not able to do that correctly if the router can't serve at 1Gb+ speeds. So I don't see why I shouldn't use it this way.


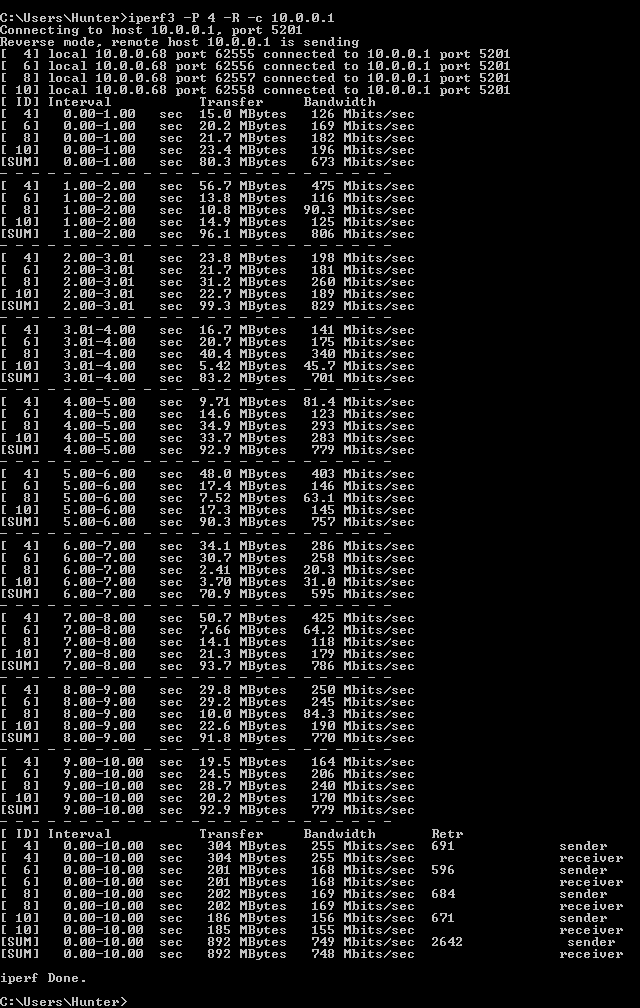

      Then, I ran these with 4 threads, directly to the firewall and got odd results. The reversed mode is achieving somewhat expected results while the normal iperf test is sitting at a dismal 300mbps.


      During all these tests the the CPU hit a throughly unimpressive 2% usage.
      This is htop during the height of the test.


      You can almost hear the 24 threads snoring.

      So I'm at a loss. I would really appreciate any help or advice you could throw my way. I'm still getting used to this kind of stuff but considering the hardware I'm using these results seem extremely disappointing to me to say the least.

      Thank you in advance.

      1 Reply Last reply Reply Quote 0
      • S
        Superfish1000
        last edited by

        Meanwhile my friend can hit gbps on a potato J1800 Celeron running IPfire...

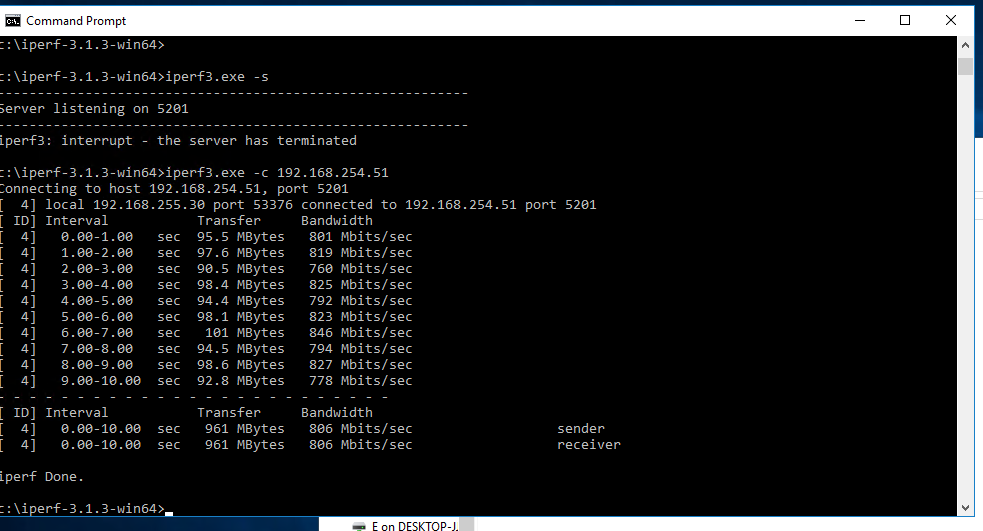

        0_1539492853716_J1800 Celeron IPFire.png

        1 Reply Last reply Reply Quote 0
        • GrimsonG
          Grimson Banned
          last edited by

          Do you use traffic shaping/limiters on your LAN interface?

          1 Reply Last reply Reply Quote 0
          • johnpozJ
            johnpoz LAYER 8 Global Moderator
            last edited by johnpoz

            So I just ran tests to my sg4860 and looks fine for me to the firewall

            C:\tools\iperf3.6_64bit>iperf3.exe -c 192.168.9.253
            warning: Ignoring nonsense TCP MSS 0
            Connecting to host 192.168.9.253, port 5201
            [  5] local 192.168.9.100 port 61864 connected to 192.168.9.253 port 5201
            [ ID] Interval           Transfer     Bitrate
            [  5]   0.00-1.00   sec  76.0 MBytes   637 Mbits/sec
            [  5]   1.00-2.00   sec  77.0 MBytes   646 Mbits/sec
            [  5]   2.00-3.00   sec  76.6 MBytes   643 Mbits/sec
            [  5]   3.00-4.00   sec  77.5 MBytes   650 Mbits/sec
            [  5]   4.00-5.00   sec  78.5 MBytes   659 Mbits/sec
            [  5]   5.00-6.00   sec  76.4 MBytes   640 Mbits/sec
            [  5]   6.00-7.00   sec  78.4 MBytes   657 Mbits/sec
            [  5]   7.00-8.00   sec  76.9 MBytes   645 Mbits/sec
            [  5]   8.00-9.00   sec  79.4 MBytes   666 Mbits/sec
            [  5]   9.00-10.00  sec  78.4 MBytes   658 Mbits/sec
            - - - - - - - - - - - - - - - - - - - - - - - - -
            [ ID] Interval           Transfer     Bitrate
            [  5]   0.00-10.00  sec   775 MBytes   650 Mbits/sec                  sender
            [  5]   0.00-10.01  sec   774 MBytes   649 Mbits/sec                  receiver

            iperf Done.

            C:\tools\iperf3.6_64bit>iperf3.exe -c 192.168.9.253 -R
            warning: Ignoring nonsense TCP MSS 0
            Connecting to host 192.168.9.253, port 5201
            Reverse mode, remote host 192.168.9.253 is sending
            [  5] local 192.168.9.100 port 61872 connected to 192.168.9.253 port 5201
            [ ID] Interval           Transfer     Bitrate
            [  5]   0.00-1.00   sec   109 MBytes   914 Mbits/sec
            [  5]   1.00-2.00   sec   112 MBytes   943 Mbits/sec
            [  5]   2.00-3.00   sec   113 MBytes   948 Mbits/sec
            [  5]   3.00-4.00   sec   113 MBytes   949 Mbits/sec
            [  5]   4.00-5.00   sec   113 MBytes   949 Mbits/sec
            [  5]   5.00-6.00   sec   113 MBytes   949 Mbits/sec
            [  5]   6.00-7.00   sec   111 MBytes   928 Mbits/sec
            [  5]   7.00-8.00   sec   112 MBytes   942 Mbits/sec
            [  5]   8.00-9.00   sec   113 MBytes   949 Mbits/sec
            [  5]   9.00-10.00  sec   113 MBytes   949 Mbits/sec
            - - - - - - - - - - - - - - - - - - - - - - - - -
            [ ID] Interval           Transfer     Bitrate         Retr
            [  5]   0.00-10.00  sec  1.10 GBytes   943 Mbits/sec    0             sender
            [  5]   0.00-10.00  sec  1.10 GBytes   942 Mbits/sec                  receiver

            iperf Done.

            C:\tools\iperf3.6_64bit>


            I wouldn't expect running "to" the firewall to peg gig.. The mid 900's was nice to see when reversed it.

            An intelligent man is sometimes forced to be drunk to spend time with his fools
            If you get confused: Listen to the Music Play
            Please don't Chat/PM me for help, unless mod related
            SG-4860 24.11 | Lab VMs 2.8, 24.11

            1 Reply Last reply Reply Quote 0
            • stephenw10S
              stephenw10 Netgate Administrator
              last edited by

              Hmm, something odd going on there. Of you are testing between local iperf3 instances on two pfSense interfaces I expect to see ~940MBps in both directions with ease on that hardware. You can pass that with a C2D and a crappy one at that!

              I would start out with a very basic config and test that. Then add stuff like Squid etc.

              Steve

              1 Reply Last reply Reply Quote 0
              • M
                marvosa
                last edited by marvosa

                @superfish1000 said in Disappointing sub Gb throughput using server hardware.:

                Killing the common stupid responses I've seen.

                You need "~Server Hardware~" : I have Server Hardware.
                My pfSense box is a Supermicro X8DTL-3F board with dual Xeon L5640 (6Core x 6Thread x 2 @ 2.27GHz) CPUs and 8GB of ECC DDR3.
                NICs are dual Intel 82574L Gigabit. (Built into the board)
                The Sqauid cache is stored on a ZFS pool with 1TB HDD with a 120GB SSD cache drive.

                You shouldn't use iperf3 on the router, test through the router. : I did. No significant difference.
                I figure there is probably a reason for this suggestion but the whole point is that I want to be able to do network caching on the box as well and it's not able to do that correctly if the router can't serve at 1Gb+ speeds. So I don't see why I shouldn't use it this way.

                The hardware recommendations you see being echoed around the forums are coming directly from the vendor (PFsense/NetGate), which is why you keep seeing "Server Class Hardware" for anything over 500 Mbit. It's not a "stupid" response. You're hearing it because that's what the vendor recommends to reliably push data thru their product at 1 Gbit throughput. The fact that your hardware has the specs needed to push 1 Gbit is only half the equation.

                It's also difficult to offer any targeted troubleshooting when no network details are provided. Provide a network map so we know what's connected where. What kind of switches are you using? Are you virtualized? Are you using VLAN's? If you're using VLANs, are they terminated on PFsense or your switch? etc, etc.

                Then there's some of the obvious stuff... anything notable in the syslogs? Any in/out errors on any of the PFsense interfaces? Are all interfaced connected at full duplex? Have you tested your cabling? Are your NIC's on the same BUS (possible bottleneck)? What other packages are you running if any? What version of PFsense are you running?

                Long story short, we need more details.

                1 Reply Last reply Reply Quote 0
                • S
                  Superfish1000
                  last edited by Superfish1000

                  @grimson said in Disappointing sub Gb throughput using server hardware.:

                  Do you use traffic shaping/limiters on your LAN interface?

                  No, it is disabled.

                  @stephenw10 said in Disappointing sub Gb throughput using server hardware.:

                  I would start out with a very basic config and test that. Then add stuff like Squid etc.

                  I disabled Squid and openVPN, which are the only services I have running, and got the same result.
                  I have VLANs enabled but I doubt those are having any effect since I was getting the same results before enabling those.

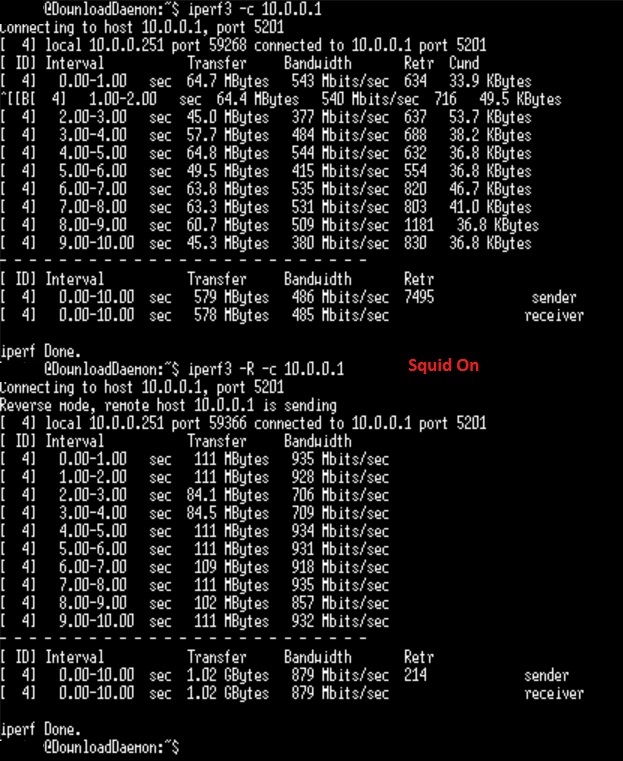

                  0_1539589277887_Squid off.jpg
                  0_1539589297340_Squid back on.jpg
                  0_1539589312250_OpenVPN back on too.jpg

                  The hardware recommendations you see being echoed around the forums are coming directly from the vendor (PFsense/NetGate), which is why you keep seeing "Server Class Hardware" for anything over 500 Mbit. It's not a "stupid" response. You're hearing it because that's what the vendor recommends to reliably push data thru their product at 1 Gbit throughput.

                  This is fair. I only mentioned it because the default response whenever someone said that their speed was low as "you need server hardware" which is not helpful, or frankly logical imo. You're not gonna get gbps on a potato, but if you tape several potatoes together then you should be fine.

                  The fact that your hardware has the specs needed to push 1 Gbit is only half the equation. It's difficult to offer any targeted troubleshooting when no network details are provided.

                  Provide a network map so we know what's connected where. What kind of switches are you using? Are you virtualized? Are you using VLAN's? If you're using VLANs, are they terminated on PFsense or your switch? etc, etc.

                  Network map is super simple.
                  0_1539588715866_Untitled Diagram.png

                  Then there's some of the obvious stuff... anything notable in the syslogs?

                  Nothing of note

                  Any in/out errors on any of the PFsense interfaces?

                  LAN IN : 37,127 of 235,349,599
                  I think I got those when I was messing with my equipment. It hasn't changed recently.

                  Are all interfaced connected at full duplex?

                  Yes.

                  Have you tested your cabling?

                  Unfortunately I do not have equipment to do a proper test but I don't have reason to believe that it is the issue.

                  Are your NIC's on the same BUS (possible bottleneck)?

                  Honestly not sure. Could you advise how I can find out?

                  What other packages are you running if any?


                  What version of PFsense are you running?

                  My bad. Should have included that.

                  2.4.4-RELEASE (amd64)
                  built on Thu Sep 20 09:03:12 EDT 2018
                  FreeBSD 11.2-RELEASE-p3

                  1 Reply Last reply Reply Quote 0
                  • johnpozJ
                    johnpoz LAYER 8 Global Moderator
                    last edited by johnpoz

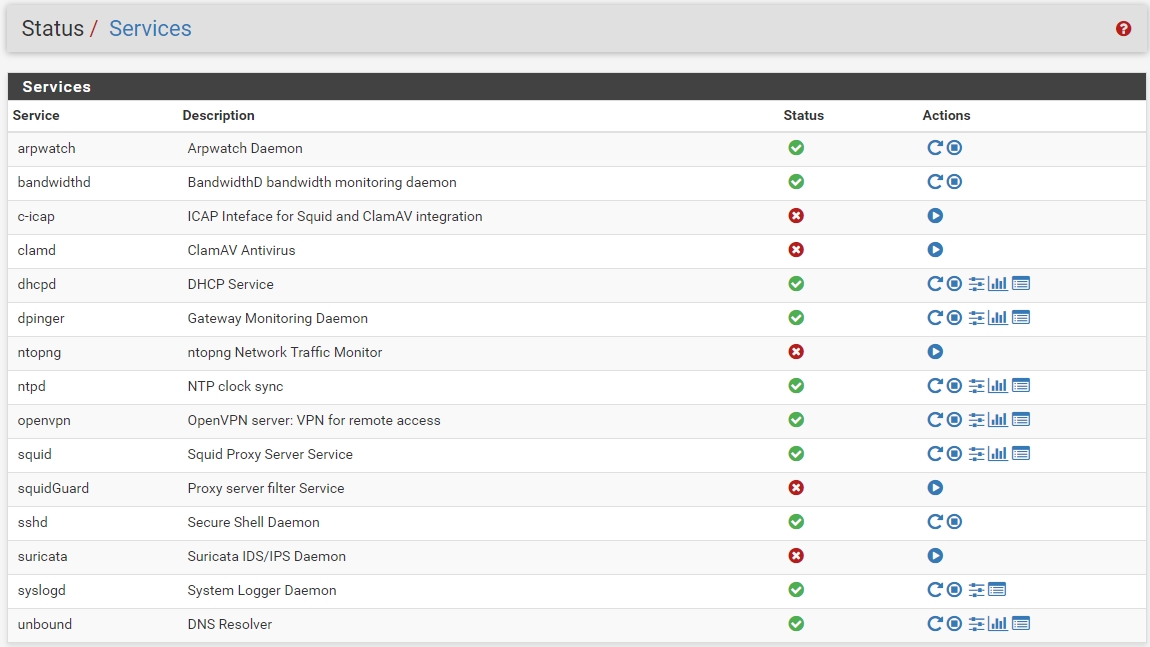

                    arpwatch and bandwdithd are packages - what do you mean your not sure? Just look at the installed packages tab..

                    An intelligent man is sometimes forced to be drunk to spend time with his fools
                    If you get confused: Listen to the Music Play
                    Please don't Chat/PM me for help, unless mod related
                    SG-4860 24.11 | Lab VMs 2.8, 24.11

                    S 1 Reply Last reply Reply Quote 0
                    • stephenw10S
                      stephenw10 Netgate Administrator
                      last edited by

                      Where are you testing between on that diagram?

                      Is that traffic going over VLANs at all?

                      Really you should start with something very basic and work up if you can. Default config, just WAN and LAN, test between ion iperf server on the WAN and a client on the LAN. If you still see less that line speed there then you have a deeper problem to investigate.

                      Steve

                      1 Reply Last reply Reply Quote 0
                      • S
                        Superfish1000 @johnpoz
                        last edited by

                        @johnpoz Comments refer to the quote above. The photo was my reply. I didn't think they would be causing an issue so I didn't bother disabling them. If you think they might be an issue I'll just turn them off. I do know they are there. Thankfully I'm not a total idiot.

                        @stephenw10 said in Disappointing sub Gb throughput using server hardware.:

                        Where are you testing between on that diagram?

                        I am testing between a few things there. The LAN tests were between the desktop and Ubuntu VM to sanity check and make sure my hardware wasn't borked before I even got to the firewall. The other tests were conducted between one of those devices and the firewall.
                        In the case of the through firewall tests I put the Comcast modem router into it's normal configuration(LAN) and connected a toughbook to the other side to allow me to test through.

                        Is that traffic going over VLANs at all?

                        None that I'm playing with. I have security cameras segmented on a VLAN and they are sending data to the NVR but it is marginal, < 5 mbps. I had this issue long before I set those up however so this isn't a result of that.

                        Really you should start with something very basic and work up if you can. Default config, just WAN and LAN, test between ion iperf server on the WAN and a client on the LAN. If you still see less that line speed there then you have a deeper problem to investigate.

                        I will completely unplug everything if you want and test it again but I've had this issue since I installed the firewall through rewiring and switch changes.

                        1 Reply Last reply Reply Quote 0
                        • stephenw10S
                          stephenw10 Netgate Administrator
                          last edited by

                          Hmm, OK.

                          It's less the wiring and additional devices that I would want to remove and more about the firewall config.

                          That said your LAN to LAN result doesn't looks that great. If I run a test between local clients I see:

                          steve@steve-MMLP7AP-00 ~ $ iperf3 -c 172.21.16.88
                          Connecting to host 172.21.16.88, port 5201
                          [  4] local 172.21.16.5 port 33030 connected to 172.21.16.88 port 5201
                          [ ID] Interval           Transfer     Bandwidth       Retr  Cwnd
                          [  4]   0.00-1.00   sec   112 MBytes   943 Mbits/sec    0   86.3 KBytes
                          [  4]   1.00-2.00   sec   112 MBytes   942 Mbits/sec    0    106 KBytes
                          [  4]   2.00-3.00   sec   112 MBytes   941 Mbits/sec    0    106 KBytes
                          [  4]   3.00-4.00   sec   112 MBytes   941 Mbits/sec    0    106 KBytes
                          [  4]   4.00-5.00   sec   112 MBytes   942 Mbits/sec    0    106 KBytes
                          [  4]   5.00-6.00   sec   112 MBytes   941 Mbits/sec    0    106 KBytes
                          [  4]   6.00-7.00   sec   112 MBytes   941 Mbits/sec    0    106 KBytes
                          [  4]   7.00-8.00   sec   112 MBytes   941 Mbits/sec    0    164 KBytes
                          [  4]   8.00-9.00   sec   112 MBytes   942 Mbits/sec    0    164 KBytes
                          [  4]   9.00-10.00  sec   112 MBytes   942 Mbits/sec    0    430 KBytes
                          - - - - - - - - - - - - - - - - - - - - - - - - -
                          [ ID] Interval           Transfer     Bandwidth       Retr
                          [  4]   0.00-10.00  sec  1.10 GBytes   942 Mbits/sec    0             sender
                          [  4]   0.00-10.00  sec  1.10 GBytes   941 Mbits/sec                  receiver

                          iperf Done.


                          Steve

                          1 Reply Last reply Reply Quote 0
                          • johnpozJ
                            johnpoz LAYER 8 Global Moderator
                            last edited by johnpoz

                            Yeah if your not seeing at least low 900's between clients on the same lan you got something not quite up to snuff.

                            C:\tools\iperf3.6_64bit>iperf3.exe -c 192.168.9.9
                            warning: Ignoring nonsense TCP MSS 0
                            Connecting to host 192.168.9.9, port 5201
                            [  5] local 192.168.9.100 port 63702 connected to 192.168.9.9 port 5201
                            [ ID] Interval           Transfer     Bitrate
                            [  5]   0.00-1.00   sec   114 MBytes   956 Mbits/sec
                            [  5]   1.00-2.00   sec   113 MBytes   947 Mbits/sec
                            [  5]   2.00-3.00   sec   112 MBytes   936 Mbits/sec
                            [  5]   3.00-4.00   sec   113 MBytes   948 Mbits/sec
                            [  5]   4.00-5.00   sec   113 MBytes   948 Mbits/sec
                            [  5]   5.00-6.00   sec   113 MBytes   949 Mbits/sec
                            [  5]   6.00-7.00   sec   113 MBytes   950 Mbits/sec
                            [  5]   7.00-8.00   sec   113 MBytes   949 Mbits/sec
                            [  5]   8.00-9.00   sec   112 MBytes   942 Mbits/sec
                            [  5]   9.00-10.00  sec   113 MBytes   950 Mbits/sec
                            - - - - - - - - - - - - - - - - - - - - - - - - -
                            [ ID] Interval           Transfer     Bitrate
                            [  5]   0.00-10.00  sec  1.10 GBytes   948 Mbits/sec                  sender
                            [  5]   0.00-10.00  sec  1.10 GBytes   947 Mbits/sec                  receiver

                            iperf Done.


                            Test from to OLD pos N40L box...

                            An intelligent man is sometimes forced to be drunk to spend time with his fools
                            If you get confused: Listen to the Music Play
                            Please don't Chat/PM me for help, unless mod related
                            SG-4860 24.11 | Lab VMs 2.8, 24.11

                            1 Reply Last reply Reply Quote 0
                            • H
                              Harvy66
                              last edited by

                              A rule of thumb is dual socket is sub-optimal for firewalls. Inter-socket communications can dramatically increase latency if the CPU processing the interrupt is not the same CPU that the NIC is attached to.

                              You say 2% cpu usage, but network traffic cannot be perfectly load balanced across all cores. 2% cpu with 24 threads is the same as 50% of a single core, which could cause poor performance. Like saying you have 24 people building a house and wondering why it's going to slowly when you have 23 people sitting around and an over-worked 24th.

                              If you can, disable hyper-threading, see if that helps, and preferably pin the interrupts for your NICs to the socket "closest" to them.

                              1 Reply Last reply Reply Quote 0
                              • S
                                Superfish1000
                                last edited by Superfish1000

                                The LAN to LAN results I'm not worried about. My desktop seems to be getting lower results than I would like and the Ubuntu VM is a VM with a paravirtualized NIC. I don't expect it to hit full speed because the 1gbps NIC is being shared by the hypervisor, and two active VMs. That being said, it's getting a better speed than my desktop when testing the firewall.
                                I could fire up some other servers as well but it didn't make sense to me to test the network switch because I have been getting the same poor speed to the firewall since I installed it, originally with an AT9924-T as my main switch and now a Quanta LB4M.

                                @Harvy66 I know how single vs multi thread works. And I get what you're saying. I'll straight up remove the second CPU if upu think it will help but it's been this way since I had a single X5550. I upgraded them to L5640s to get more threads and lower wattage. If you look at my original comment you'll see my htop reading. No single thread was having any real load. I'll disable HT and test it again.

                                1 Reply Last reply Reply Quote 0
                                • stephenw10S
                                  stephenw10 Netgate Administrator
                                  last edited by

                                  I'd be amazed if that was causing the sort of throttling you're seeing. But a two interface bare bones config test would prove it.

                                  Steve

                                  1 Reply Last reply Reply Quote 0
                                  • S
                                    Superfish1000
                                    last edited by Superfish1000

                                    Tell ya what. I've got a fresh SSD. I'll load up a totally bone stock default install tonight and I'll run some tests.

                                    1 Reply Last reply Reply Quote 2
                                    • S
                                      Superfish1000
                                      last edited by Superfish1000

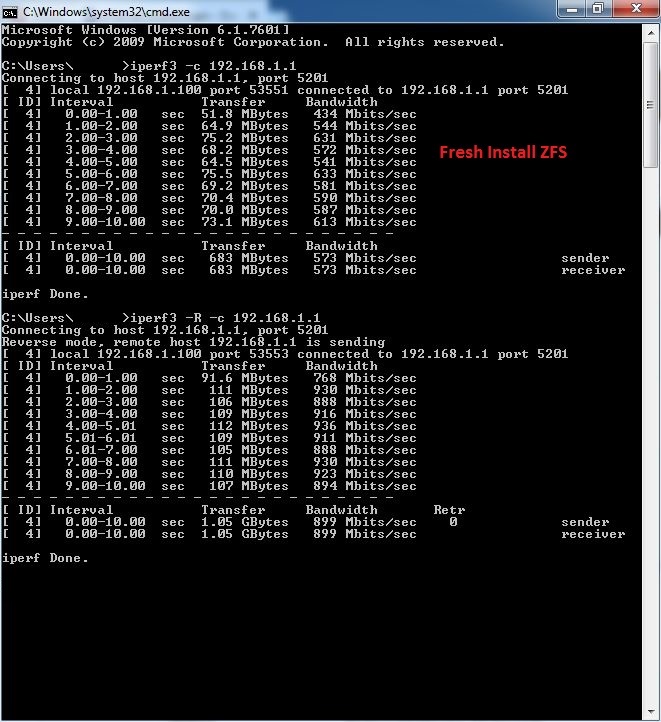

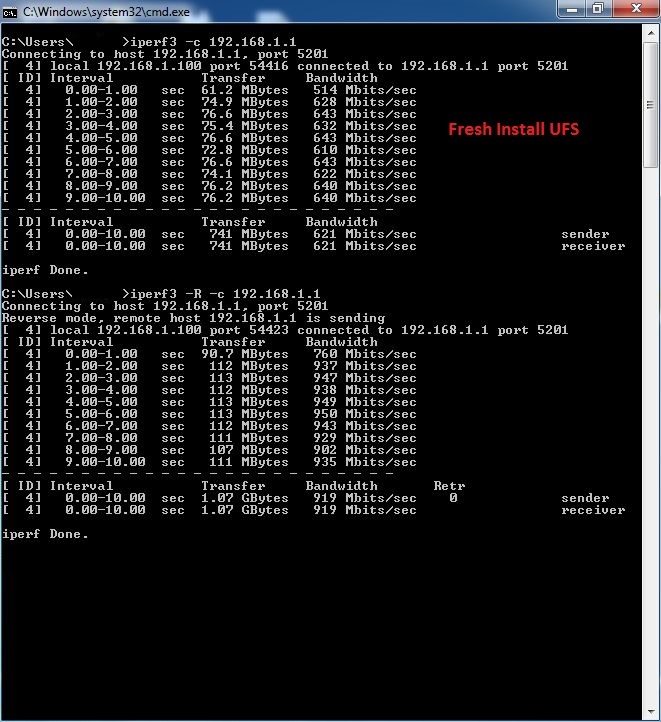

                                      1_1539843691778_Fresh Instal ZFS.jpg 0_1539843691777_Fresh Instal UFS.jpg

                                      Completely fresh install, updated to 2.4.4 (whatever is current at this moment) pkg install iperf3, iperf3 -s

                                      Connected directly from LAN to my Toughbook's NIC.

                                      1 Reply Last reply Reply Quote 0
                                      • S
                                        Superfish1000
                                        last edited by

                                        So after some more testing I think the issue may lie with the Intel NIC. At the recommendation of a friend I installed IPFire to test it's performance and fought with it for several hours. The iperf tests I was getting were similar but seemed reversed speed wise. Don't remember exactly. It's Nearly 6AM now.

                                        Since the results looked way too similar I tried using a dual Broadcom NIC which oddly refused to get a public IP but handled LAN fine. So I used the onboard NIC as WAN and the Broadcom NIC as LAN. This time the iperf test hit the high 800s to 900s. I haven't yet duplicated this test with Pfsense to confirm it has the same behavior, but I have a feeling this is the answer. Looks like I'll be finding a newer NIC to test. I'll update again when I conduct more tests.

                                        1 Reply Last reply Reply Quote 0
                                        • stephenw10S
                                          stephenw10 Netgate Administrator
                                          last edited by

                                          That does seem suspect.

                                          The filesystem type should make no difference at all in that test. iperf doesn't read or write from disk. But good to try I guess.

                                          Steve

                                          S 1 Reply Last reply Reply Quote 0
                                          • S
                                            Superfish1000 @stephenw10
                                            last edited by

                                            @stephenw10 Yeah I figured. Just thought since it's not exactly the standard I may as well test it. ZFS also has higher CPU and RAM overhead unless I'm mistaken.

                                            1 Reply Last reply Reply Quote 0
                                            • First post
                                              Last post
                                            Copyright 2025 Rubicon Communications LLC (Netgate). All rights reserved.
