S
@robina80 said in Installing mSATA on APU board:
i have succesfully done it
downloaded and put the image on my usb stick using "win32 disk imager"
inserted it in free usb port connected serial cable to laptop,

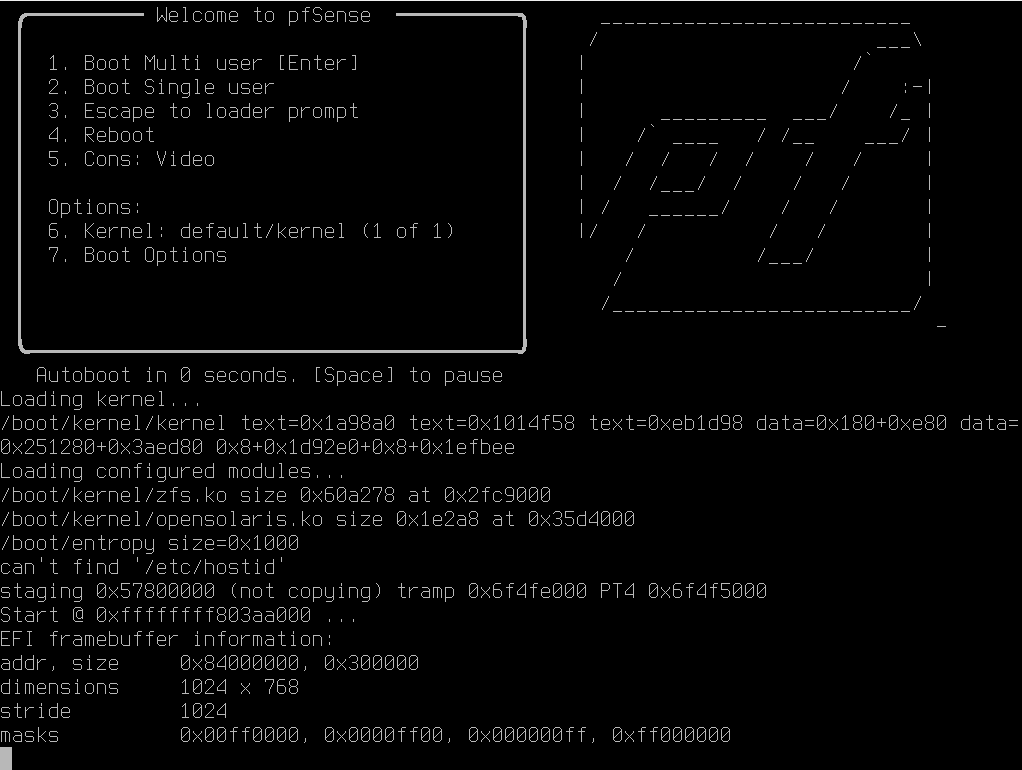

opened up putty and changed baud rate to "115200" to see the boot menu and boot of the usb
closed/opened putty again and changed the baud rate to "9600" so i can install and follow the on screen instructions
once done i changed my boot order so the first option was my mSATA
once i could log back in the webgui i restored my settings so it was like how i had it before
Hi !
I faced up to a BIG trouble while upgrading to the latest version of pfSense (2.4.4-RELEASE (Patch 3) ) : unable to boot, something to do with CPU microcode update ?
# service microcode_update start
If the CPU requires a microcode update, a console message such as the following
will appear:
Updating CPU Microcode...
/usr/local/share/cpucontrol/m32306c3_00000022.fw: updating cpu /dev/cpuctl0 from rev 0x17 to rev 0x22... done.
/usr/local/share/cpucontrol/m32306c3_00000022.fw: updating cpu /dev/cpuctl2 from rev 0x17 to rev 0x22... done.
/usr/local/share/cpucontrol/m32306c3_00000022.fw: updating cpu /dev/cpuctl4 from rev 0x17 to rev 0x22... done.
/usr/local/share/cpucontrol/m32306c3_00000022.fw: updating cpu /dev/cpuctl6 from rev 0x17 to rev 0x22... done.
Done.
>>> Setting vital flag on pfSense... done.
External config loader 1.0 is now starting... ada0s1 ada0s1a ada0s1b
Launching the init system...Updating CPU Microcode...
Fatal trap 12: page fault while in kernel mode
cpuid = 1; apic id = 01
fault virtual address = 0x800e29000
fault code = supervisor write data, page not present
instruction pointer = 0x20:0xffffffff81189dde
stack pointer = 0x28:0xfffffe0035f2a940
frame pointer = 0x28:0xfffffe0035f2a940
code segment = base 0x0, limit 0xfffff, type 0x1b
= DPL 0, pres 1, long 1, def32 0, gran 1
processor eflags = interrupt enabled, resume, IOPL = 0
current process = 608 (logger)
I proceeded like robina80 explained, booting from USB with "pfSense-CE-memstick-serial-2.4.4-RELEASE-p3-amd64" version, USB keyboard attached, Serial port to 115200 ==> Everything went back, pfSense is now able to boot ;-)
